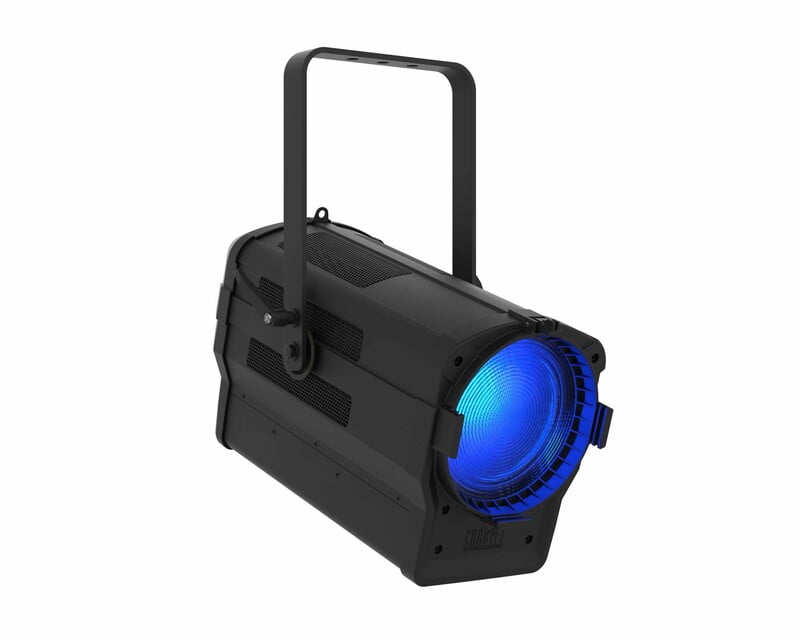

Chauvet Ovation F915FC LED Fresnel RGBAL Motorised Zoom 30-85°
Ovation F-915FC is a high-power, full colour mixing Fresnel style fixture that utilizes our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorized zoom with a 30° – 85° field angle allows you to add light where it is needed. Control of the virtual colour wheel, zoom and output can be via DMX or on-board dials.
Availability
2-3 business days Choose Quantity
£1,230.00 £1,835.00
Product Details
Main Features
- Full Colour LED Fresnel lighting fixture
- Smooth, motorized zoom
- Easy to use on board control of colour, zoom and dimming
- Virtual Colour wheel with colour matched to popular gel colours
- Colour Temperature Presets from 2800 K to 6500 K
- Virtually silent operation for use in studio and theatre applications
Product Specifications
Optical
- Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
- Colour Temperature (range): 2800 to 6500 K
- CRI (3200 K): 90
- Beam Angle: 17° to 54°
- Field Angle: 30° to 85°
- Zoom Angle: 30° to 85°
- Lumens (30°): 4,294
- Lumens (73°): 6,661
- Illuminance (30°): 1,450 lux @ 5 m
- Illuminance (73°): 312lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 27 Hz
- Standalone Colour Mixing: Yes
- Colour Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Connections
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik® powerCON®
- Power Output: Neutrik® powerCON®
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 3, 5, 7, 11, 13, 14 or 17
- Modes/Personalities: 8 personalities (3, 5, 7, 11, 13, 14, 17, HSV)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
- Power and Current: 260 W, 2.15 A @ 120 V, 60 Hz
- Power and Current: 260 W, 1.25 A @ 208 V, 60 Hz
- Power and Current: 260 W, 1.12 A @ 230 V, 50 Hz
Certifications
- CE, MET
- IP Rating: IP20, dry location
Connections
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik® powerCON®
- Power Output: Neutrik® powerCON®
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Physical & Dimensions
- Height: 320mm
- Width: 275mm
- Depth: 569.44mm
- Weight: 8.6kg
- Exterior Colour: Black
- Housing Material: Aluminium alloy, Aluminium die-cast
What's in the Box?
- Neutrik® powerCON® power cord
- Gel frame (7.5 in/191 mm accessories)
