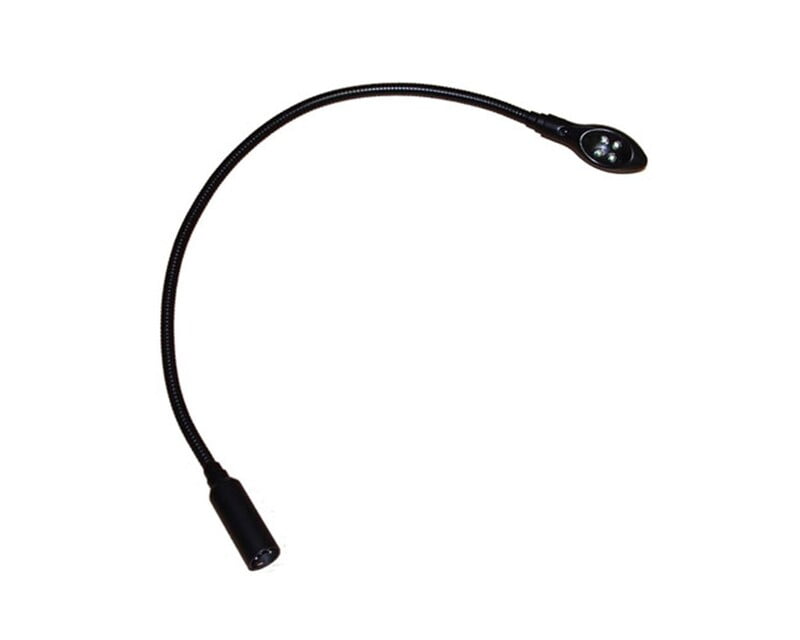

Allen & Heath LED-Lamp-SX 18" Straight LED Gooseneck Lamp with 4-Pin XLR
LEDLamp is a variable brightness 18” gooseneck lamp for mixing console and other equipment illumination using LEDs (light emitting diodes) instead of a filament bulb. The LEDs are angled at 40 degrees ensuring a suitably wide light dispersion. Producing a bright, white light, the LEDLamp is more relaxing on the eye and better suited to illuminating a console control surface than the yellow light of a filament bulb. Unlike the filament bulb, the LEDs do not produce heat and they do not require replacement in time. A dimmer function is built into the lamp head. The light can be variably dimmed using a knurled thumbwheel from fully on to almost off so that it can be set according to the operating brightness required.
The LEDLamp circuit is built into a strong, stylish plastic moulding to ensure protection and user comfort. The flexible metal gooseneck can be bent into shape to adjust to the area being illuminated. It terminates in a 4-pin metal XLR suitable for plugging into the mating socket as found on many consoles including those made by Allen & Heath. Alternatively, it can be powered from an external 12V power supply.

Main Features
- Flexible 4pin XLR gooseneck LED Lamp
- Comfortable cool white LED light
- Built-in dimmer for variable brightness
- No need to replace bulbs
- Low current requirement
- Rugged construction with protective plastic head
Product Specifications
- Recommended Power: 12V DC @ 35mA
- Range Allowed: 10 - 18V AC or DC
- Maximum: 18V @ 8OmA
- Light Source: 4x Super bright white LEDs
- Brightness: Variable from low to fully on
- Connector Type: 4pin male XLR
- Wiring: Power across pin 3 and 4, case to shell
- Mechanics: Metal connector and gooseneck, ABS head
- Dimensions:
- Gooseneck: 18 inches (457mm)
- Overall: 22.5 inches (572mm)
