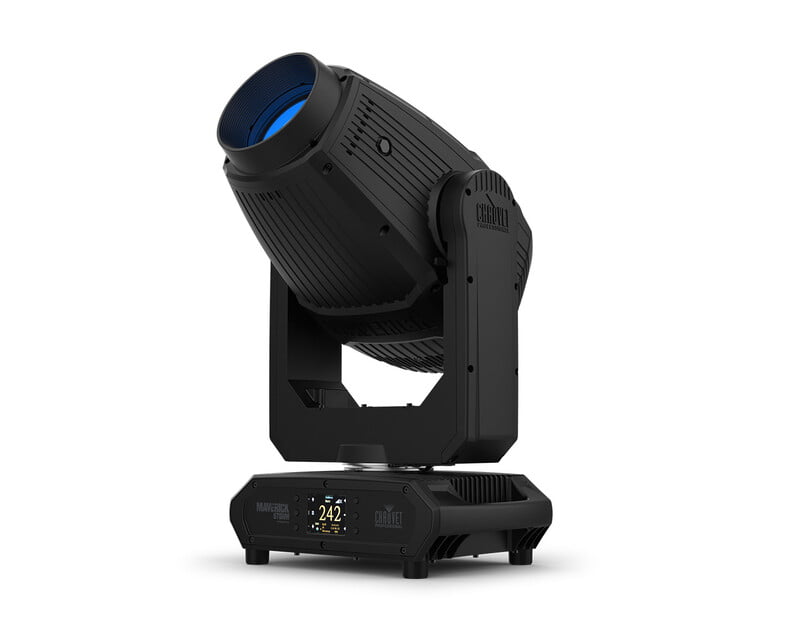

Chauvet Maverick Storm 2 Profile 580W LED
Maverick Storm 2 Profile fits a full armory of features into the lightest midsized IP65 moving profile in its division. Drafted to fill designer demand for a double-duty compact powerhouse that combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Sculpt its 28,00 lumens of output with an exquisitely sharp framing shutter system, zoom down to a slicing 5.5 degree beam, and freely create with a wheelhouse that includes variable CMY + CTO colour mixing, colour wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.
Availability
Contact for Availability Choose Quantity
£999,999.00
Product Details
Main Features
- 16-bit dimming of master dimmer for smooth control of fades
- Variable CMY + CTO colour mixing system to create a wide pallet of colours
- CRI and CTB filters on colour wheel for added flexibility
- One rotating, indexing and interchangeable slot and lock gobo wheel
- One rotating static gobo wheel
- DMX , WDMX, sACN, and Art-Net for full flexibility of control options
Product Specifications
Optical
- Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7500 K, 50,000 hours life expectancy
- Colour Temperature (at full): 7268 K
- CRI: 71.3
- CRI with CRI Filter: 89.8
- Front Lens Diameter: 127 mm
- Beam Angle: 5.5° to 41.8°
- Field Angle: 7.8° to 52.6°
- Cutoff Angle 8.3° to 56.5°
- Zoom Range: 5.5° to 56.5°
- Lumens – Source: 35,000
- Lumens – Output: 28,000
- Illuminance (6.8°) 65,964 lux @ 5 m
- Illuminance (54.8°) 2,588 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colours: 7 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
- Colours: CMY flags, CTO flag
- Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 9 + open (glass), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
- Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
- Framing Shutter rotation: +/- 60° rotation.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move-in-Black: Yes
- Dim Curves: 4
Connections
- Power Connection: Seetronic Powerkon IP65
- Power Input/Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
- DMX Channels: 32 or 48
- Art-Net Channels: 32 or 48
- Modes/Personalities: 2 personalities (32, 48)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 800 W, 6.82 A @ 120 V, 60 Hz
- Power and Current: 779 W, 3.77 A @ 208 V, 60 Hz
- Power and Current: 763 W, 3.41 A @ 230 V, 50 Hz
- Breaker Size: F15 A, 250 V
Construction / Physical
- Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
- Weight: 67.0 lb (30.4 kg)
- Exterior Colour: Black
- Housing Material: Aluminium diecast, High-impact flame retardant polymer, Steel
What's in the Box?
- Maverick Storm 2 Profile
- Seetronic Powerkon IP65 power cord to Edison
- Omega bracket with mounting hardware
