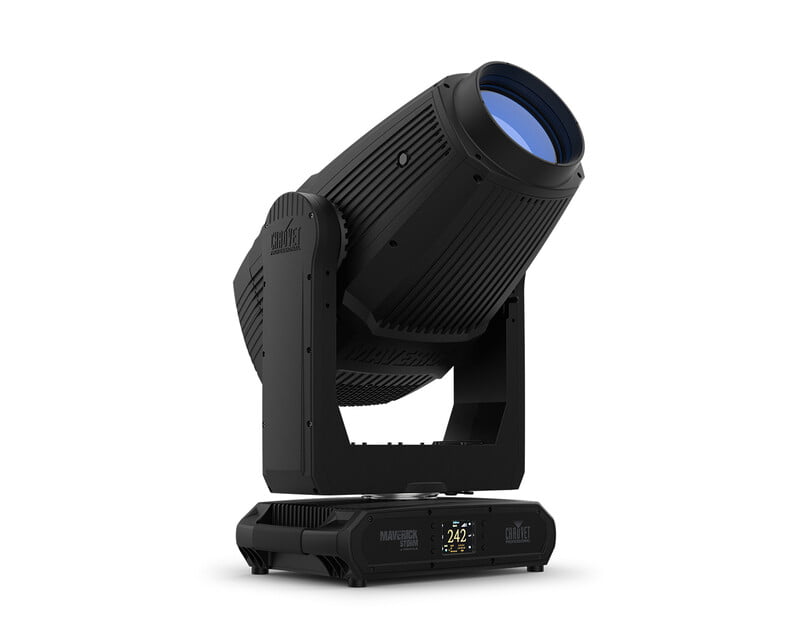

Chauvet Maverick Storm 4 Profile 1250W LED
Maverick Storm 4 Profile brings indomitable long throw performance to even the largest venues. Its ambitious design launches over 60,000 lumens across incredible distances with commanding brightness. Built to outshine, this Maverick brings more to your show than its long throw. Master the art of domination with a sophisticated variable CMY+CTO system that delivers fantastic colour rendering. Double down on crisp gobos to create complex looks with two rotating gobo wheels, two prisms, two frost filters, and an animation wheel to add even more texture. Sharp shutter framing, smooth iris and 8.5:1 zoom complete a Maverick that delivers key light and high energy kinetic effects, in an advanced IP65 alloy body that carries SunShield tech inside to protect optical components from any solar ingress through its audacious 188mm front lens.
Availability
Contact for Availability Choose Quantity
£999,999.00
Product Details
Main Features
- 16-bit dimming of master dimmer for smooth control of fades
- Variable CMY + CTO colour mixing system to create a wide pallet of colours
- CRI and CTB filters on colour wheel for added flexibility
- Two rotating, indexing and interchangeable slot and lock gobo wheels
- An animation wheel for kinetic textured effects
- DMX, WDMX, sACN, and Art-Net for full flexibility of control options
Product Specifications
Optical
- Light Source: 1 LEDs (CW) 1,250 W, (4 A), 7500 K, 50,000 hours life expectancy
- Colour Temperature (at full): 6813 K
- CRI: 69.9
- CRI with CRI Filter: 88.3
- Front Lens Diameter: 188 mm
- Beam Angle: 5.6° to 48°
- Field Angle: 6.6° to 54.4°
- Cutoff Angle 7.1° to 56.8°
- Zoom Range: 5.6° to 56.8°
- Lumens – Source: 94,000
- Lumens – Output: 59,168
- Illuminance (5.6°) 134,034 lux @ 5 m
- Illuminance (54.4°) 4,241 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colours: 6 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
- Colours: CMY flags, CTO flag
- Gobos (1): 6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
- Gobo Size: Gobo Wheel 2 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
- Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
- Framing Shutter rotation: +/- 60° rotation.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5 Linear Facets, motorized, rotating
- Prism: 5 Circular Facets, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move-in-Black: Yes
- Dim Curves: 4
Connections
- Power Connection: Seetronic Powerkon IP65
- Power Input/Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
- DMX Channels: 38 or 55
- Art-Net Channels: 38 or 55
- Modes/Personalities: 2 personalities (38, 55)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 1780 W, 15.07 A @ 120 V, 60 Hz
- Power and Current: 1760 W, 7.79 A @ 230 V, 50 Hz
Construction / Physical
- Dimensions: 18.3 x 11.93 x 32.91 in (465 x 303 x 836 mm)
- Weight: 102.5 lb (46.5kg)
- Exterior Colour: Black
- Housing Material: Aluminium diecast, High-impact flame retardant polymer, Steel
What's in the Box?
- Maverick Storm 4 Profile
- Seetronic Powerkon IP65 power cord to Bare end
- Omega bracket with mounting hardware
