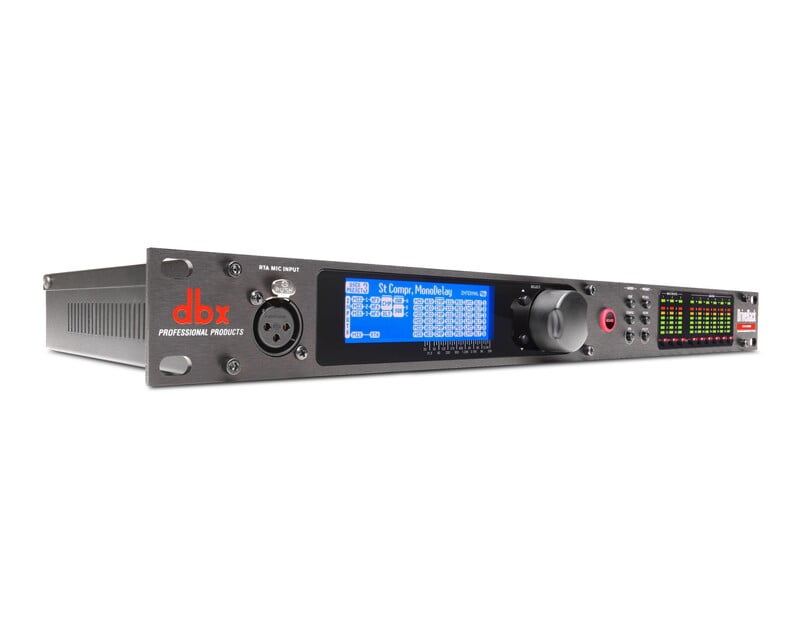

DBX DriveRack Venu360 Sound Mgt Processor with Mobile Control 1U
DriveRack Venu360
The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, additional input channels, ethernet control via an Android,® iOS,® Mac,® or Windows® device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
Availability
available now Choose Quantity
£1,259.50 £1,631.58
Product Details
Main Features
- 31-Band Graphic EQ
- Crossover (supports full range up to mono 6-way systems)
- Automatic Gain Control
- 12-Band Parametric EQ (with narrow notch capabilities)
- Backline Delay
- Noise Gate
Product Features
Input Processing
- dbx Compression
- AFS™ (Advanced Feedback Suppression)
- 31-Band Graphic EQ
- 12-Band Parametric EQ (with narrow notch capabilities)
- Subharmonic Synthesis
- Backline Delay
- Noise Gate
Output Processing
- Crossover (supports full range up to mono 6-way systems)
- 12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
- dbx Compression
- Automatic Gain Control
- Subharmonic Synthesis
- Noise Gate
- Tower Delays (up to 1000ms per output)
- 8-Band Parametric EQs (used for speaker tunings)
- dbx Limiting
- Driver Alignment Delays
Tested Wireless Routers
- Dlink 636L
- Dlink Cloud router 2000
- Cisco / linksys: WRT54G2V1
- Netgear WGR614 v7
- Netgear WNR 1000
Product Specifications
- Input: (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
- InputConnectors: (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
- InputType: Electronically balanced/RF filtered
- InputImpedance: > 30 kΩ, balanced line to line
- Max Input Level (line inputs): > +28 dBu, balanced, ≤1% THD
- Output: (6) Line Outputs
- Output Connectors: Male XLR
- OutputType: Electronically balanced, RF filtered
- OutputImpedance: 120 Ω, balanced line to line
- MaxOutputLevel: +22 dBu, balanced, ≤1% THD
- Latency: Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz); Digital AES input to output: 2.31 (48 kHz), 2.15 ms (96 kHz)
- OperatingVoltage: 100-240 VAC 50/60 Hz
- PowerConsumption: 18 W
- UnitWeight: 5.48 lbs. (2.49 kg)
- ShippingWeight: 7.10 lbs. (3.22 kg)
- Dimensions: 1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W)
