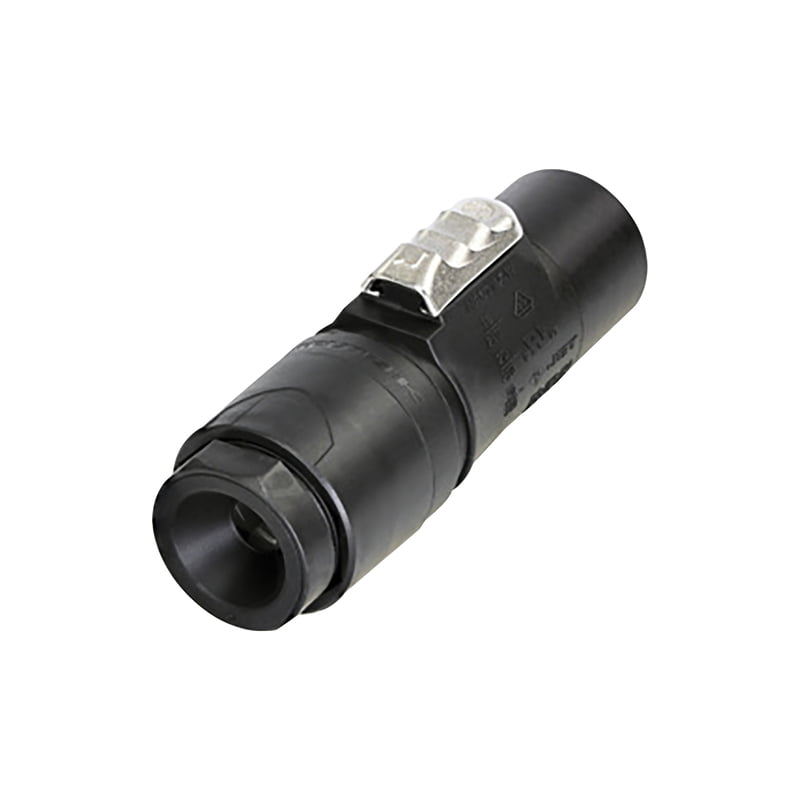

Neutrik PowerCON TRUE1 Cable Connector NAC3MX-W-TOP-L (Male)
The powerCON TRUE1 TOP-L is a locking 16A true mains connector for indoor or outdoor applications designed for big power cords with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The connector can be connected or disconnected under load or live, ideal for use in the harsh and demanding environment applications of entertainment equipment like PA systems, LED screens or lighting.
Availability
available now Choose Quantity
£7.50
Product Details
- Male cable connector
- For cable diameters 10-16 mm (0.39 – 0.63 inches)
- IEC EN 60320-1 and UL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and of equipment acc. to IEC 62368-1
- Heavy duty sealed power connector forharsh and demanding environment
- TOP True Outdoor Protection
- Uses high impact UV-resistant materials
- Single phase connector with Circuit Breaking Capability (20 A 250 VAC)Extremely robust and reliable cable retention
- For cable diameters 10-16 mm (0.39 – 0.63 inches)
- IEC EN 60320-1 and UL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and of equipment acc. to IEC 62368-1
- Heavy duty sealed power connector forharsh and demanding environment
- TOP True Outdoor Protection
- Uses high impact UV-resistant materials
- Single phase connector with Circuit Breaking Capability (20 A 250 VAC)Extremely robust and reliable cable retention
- Superior NEUTRIK quality standard
- Wire size: 2.5 mm²
- Number of electronical contacts: 2+PE
- Rated current per contact: 16A rms (USA: 20A)
- Rated voltage: 250V ac
- Number of electronical contacts: 2+PE
- Rated current per contact: 16A rms (USA: 20A)
- Rated voltage: 250V ac
