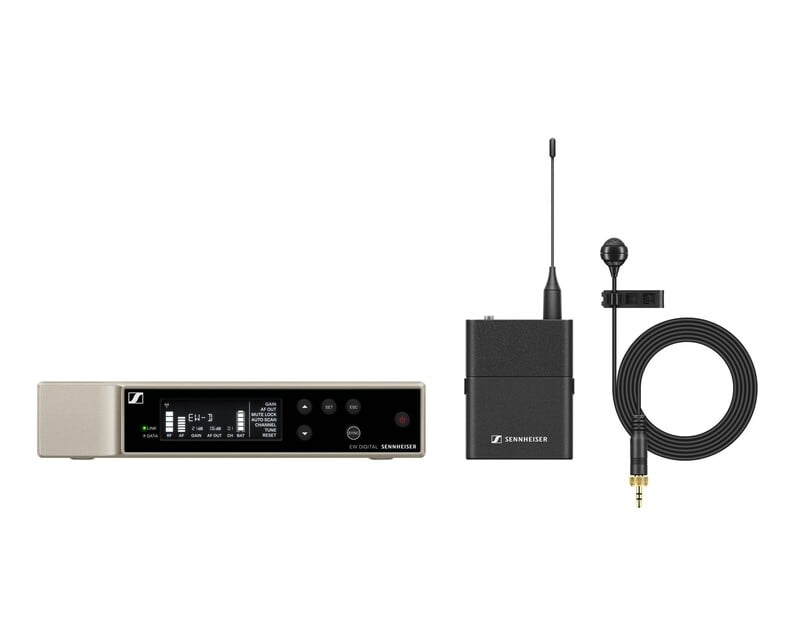

Sennheiser EW-D ME4 Wireless Lapel Mic System (S1-7) CH38
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.
Availability
available now Choose Quantity
£485.50 £619.00
Product Details
- Digital wireless eliminates noise, interference and static bursts
- UHF transmission greatly enhances range, reliability and scalability
- Mobile App streamlines setup and operation and eliminates complicated menus
- Automated setup creates reliable connections with minimal time and effort
- Up to 2,240 selectable frequencies
- Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
- 56 MHz Bandwidth will allow for up to 90 channels
- Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
Product Specifications
System
- Audio link frequency ranges
- S1-7: 606.2 - 662 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
- Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Relative humidity: 5 - 95 % (non-condensing)
EW-D EM (Rack Receiver)
- Input voltage: 11 - 13 V ⎓
- Input current: ≤ 300 mA
- Transmit power (radiated): BLE: max. 10 mW EIRP
- Audio output power: 18 dBu max.
- Dimensions: 212 x 44 x 189 mm
- Weight approx.: 1000 g (without antennas and power supply)
EW-D SK (Bodypack Transmitter)
- Input voltage: 2.0 - 4.35 V
- Input current: < 300 mA
- Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied bandwidth: 200 kHz
- Transmit power (radiated):
- Audio link: 10 mW ERP
- (Range Y1-3: 12 mW ERP)
- BLE: max. 10 mW EIRP
- Dimensions: 63 x 80 x 20 mm (without antenna)
- Weight (without batteries): approx. 120 g
ME 3 (Headset Microphone)
- Transducer principle: pre-polarized condensor microphone
- Pick-up pattern: cardioid
- Sensitivity (free field, no load) (1 kHz): 40 mV/Pa
- Max. SPL at 1 kHz: 120 dB
- Frequency response: 50 to 18,000 Hz
- Equivalent noise level A-weighted (DIN IEC 651): 31 dB
- Connector: 3.5 mm jack
- Cable length: approx. 1.60 m
- Supply voltage 7.5 V
Set in packaging
- Dimensions: 405 x 350 x 73 mm
- Weight: 2.8 kg
What’s in the Box?
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- ME 4 Lavalier microphone
- 2 rod antennas
- Power supply with country adapters
- Rackmount set
- 4 rubber feet
- Quick guide
- Safety guide
- Manufacturer declaration sheet
- 2 AA Batteries
