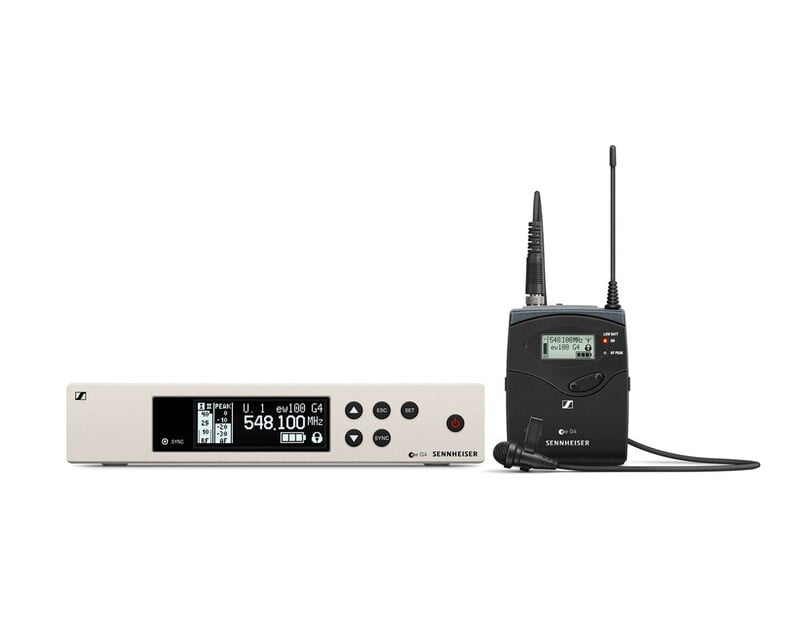

Sennheiser EW100 G4 ME2-GB Lapel System with ME2 Omni Lapel Mic CH38
Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.
The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for easy hands-free operation on any stage.
THIS ITEM (NO.507502) OPERATES ON CH38 (GB: 606 - 648 MHz)
Availability
available now Choose Quantity
£499.00 £659.00
Product Details
- Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators
- Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
Product Specifications
THIS ITEM (NO.507502) OPERATES ON CH38 (GB: 606 - 648 MHz)
EM 100 G4 - General
- Modulation: Wideband FM
- Frequency ranges
- A1: 470 - 516 MHz
- A: 516 - 558 MHz
- AS: 520 - 558 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
- 1G8: 1785 - 1800 MHz
- Receiving frequencies
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
- 1 frequency bank with up to 12 programmable channels
- Switching bandwidth: up to 42 MHz
- Nominal/peak deviation: ±24 kHz / ±48 kHz
- Receiver principle: True diversity
- Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
- Adjacent channel selection: Typically ≥ 65 dB
- Intermodulation attenuation: Typically ≥ 65 dB
- Blocking: ≥ 70 dB
- Squelch
- low: 5 dBμV
- middle: 15 dBμV
- high: 25 dBμV
- Pilot tone squelch: Can be switched off
- Antenna inputs: 2 BNC sockets
- Compander system: Sennheiser HDX
- EQ presets (switchable, act on line and monitor outputs)
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
- Total harmonic distortion (THD): ≤ 0.9 %
- AF output voltage (at peak deviation, 1 kHz AF)
- 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
- Setting range “AF Out”: 48 dB (3 dB steps)
- Temperature range -10 °C to +55 °C
- Power supply 12 V DC
- Current consumption 300 mA
EM 100 G4 - Physical & Dimensions
- Height: 43mmm
- Width: 212mm
- Depth: 190mm
- Weight: 980g
SK 100 G4 - General
- Modulation: Wideband FM
- Frequency ranges
- A1: 470 - 516 MHz
- A: 516 - 558 MHz
- AS: 520 - 558 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
- 1G8: 1785 - 1800 MHz
- Transmission frequencies
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
- 1 frequency bank with up to 12 programmable channels
- Switching bandwidth: up to 42 MHz
- Nominal/peak deviation: ±24 kHz / ±48 kHz
- Frequency stability: ≤ ±15 ppm
- RF output power at 50 Ω: Max. 30 mW
- Pilot tone squelch: Can be switched off
- Compander system: Sennheiser HDX
- AF frequency response
- Mic: 80 – 18,000 Hz
- Line: 25 – 18,000 Hz
- Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
- Total harmonic distortion (THD): ≤ 0.9 %
- Max. microphone/line input voltage: 3 Veff
- Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
- Input capacitance: Switchable
- Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
- Temperature range: -10 °C to +55 °C
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Nominal voltage: 3 V battery / 2.4 V rechargeable battery
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
- Operating time Typically: 8 h
SK 100 G4 - Physical & Dimensions
- Height: 82mm
- Width: 64mm
- Depth: 24mm
- Weight: 160g
ME 2 - General
- Transducer principle: pre-polarized condensor microphone
- Pick-up pattern: omni-directional
- Sensitivity (free field, no load) (1 kHz): 20 mV/Pa
- Max. SPL at 1 kHz: 130 dB
- Frequency response:
- "50 to 18,000 Hz (ME 2-II) 30 to 20,000 Hz (ME 2-US)"
- "Equivalent noise level A-weighted (DIN IEC 651)": 36 dB
- Connector: 3.5 mm jack
- Cable length: approx. 1.60 m
- Supply voltage: 7.5 V
What's in the Box?
- EM 100 G4 true diversity receiver
- SK 100 G4 bodypack transmitter
- ME 2 clip-on microphone
- GA 3 rackmount set
- Power supply
- 2 AA batteries
- 2 rod antennas
- RJ 10 cable
- Quick guide
- Safety guide
- Manufacturer declaration sheet
- Frequency supplement sheet
