Allen & Heath AR2412 AudioRack 24in/12out for QU, GLD and SQ Consoles 4U
Availability
2-3 business days Choose Quantity
£1,020.00 £1,091.67
Product Details
Main Features
- Main AudioRack compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor
- Provides 24 XLR inputs and 12 XLR outputs
- Includes an Aviom Pro16 compatible Monitor port
- iPad compatible
- Extendable XLR input & outputs with AR84 and AB168
- Connection is over Cat5 cable running Allen & Heath

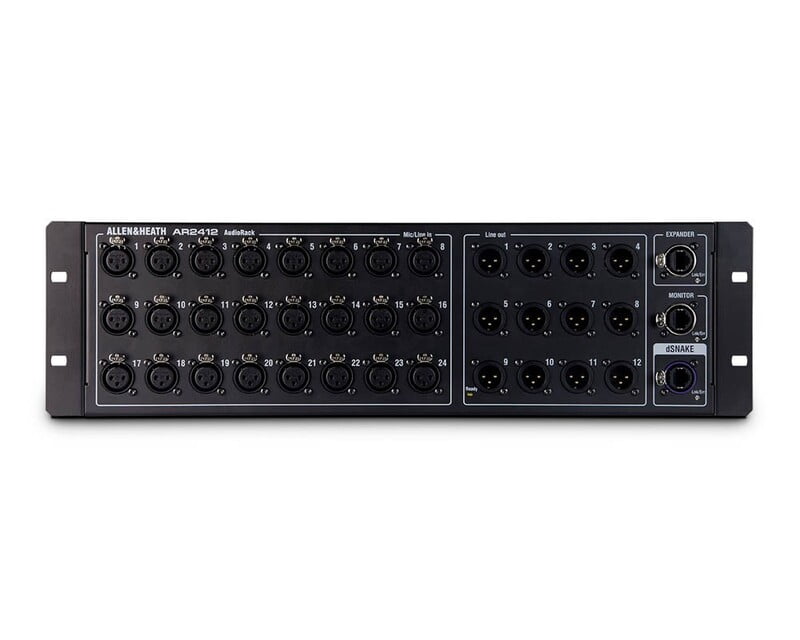

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor.
Adding an AR2412 to your system lets you position some or all of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.
dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.
AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy-chaining to an AR84 or AB168.
Product Specificatons
General
- Input sockets: 24 balanced XLR inputs
- Output sockets: 12 balanced XLR outputs
- Line level: +4dBu
- Expander port: Cat5 cable link
- Monitor port: Cat5 cable link
- dSNAKE port: Cat5 cable link
- Mains power input: IEC connector
Physical & Dimensions
- Width: 482.6mm
- Depth: 206.50mm
- Height: 136.70mm
- Weight: 5kg
