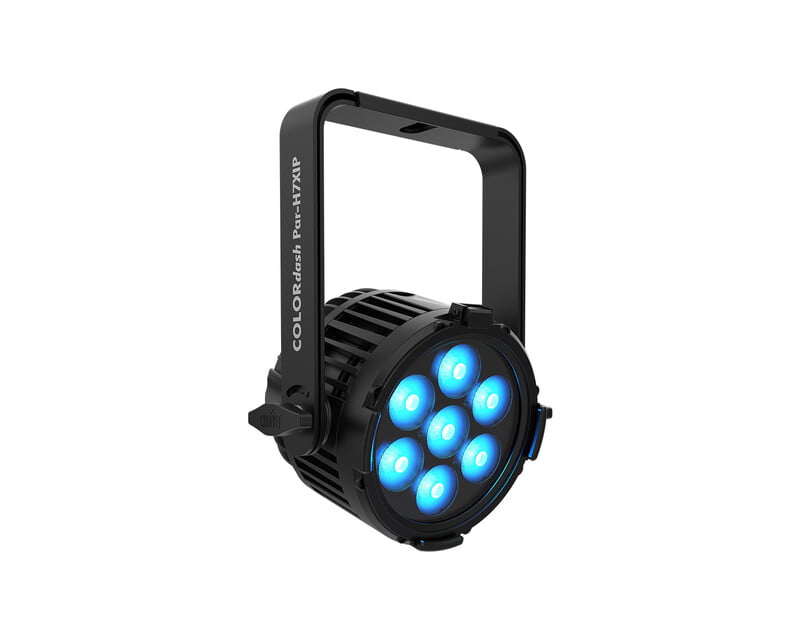

Chauvet COLORdash PAR H7X LED PAR Wash IP65
In the rig or on the floor, live or on camera, indoor or out, the compact COLORdash PAR H7X IP RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated colors with beautiful precision, weighing in under 8 lbs while delivering over 2,600 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin colour temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H7X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment.
Main Features
- Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
- At home in any weather conditions with IP rated power and DMX connections
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- RDM (Remote Device Management) for added flexibility
- Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
- Easy to read OLED display with password protection and touchscreen interface
Product Specifications
Optical
- Light Source: 7 LEDs (hex-colour RGBAW+UV) 84 W, (513 mA), 50,000hours life expectancy
- Colour Temperature (range): 2800 to 10,000 K
- Colour Temperature (at full): 11,477 K
- Beam Angle: 23°
- Field Angle: 37.9°
- Lumens: 2664
- Illuminance (total): 583 lux @ 5 m
- Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Colour Mixing: Yes
- Colour Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
Connections
- Power Connection: Edison (Local) plug to Seetronic Powercon IP65
- Power Output: Seetronic Powercon IP65
- Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
- Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 19 units @ 120 V; 34 units @ 208 V; 37 units @ 230V
- Power and Current: 71 W, .604 A @ 120 V, 60 Hz
- Power and Current: 69 W, .352 A @ 208 V, 60 Hz
- Power and Current: 68 W, .318 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Physical & Dimensions
- Dimensions: 6.7 x 9.6 x 9.8 in (170 x 243.4 x 248.1 mm)
- Weight: 7.4 lbs (3.4 kg)
- Exterior Colour: Black
- Housing Material: Aluminium alloy, Aluminium die-cast
What's in the Box?
- Colordash Par H7XIP
- Seetronic powercon IP65 power cord
- Gel frame holder (6.5 in /165 mm)
- Gel frame
