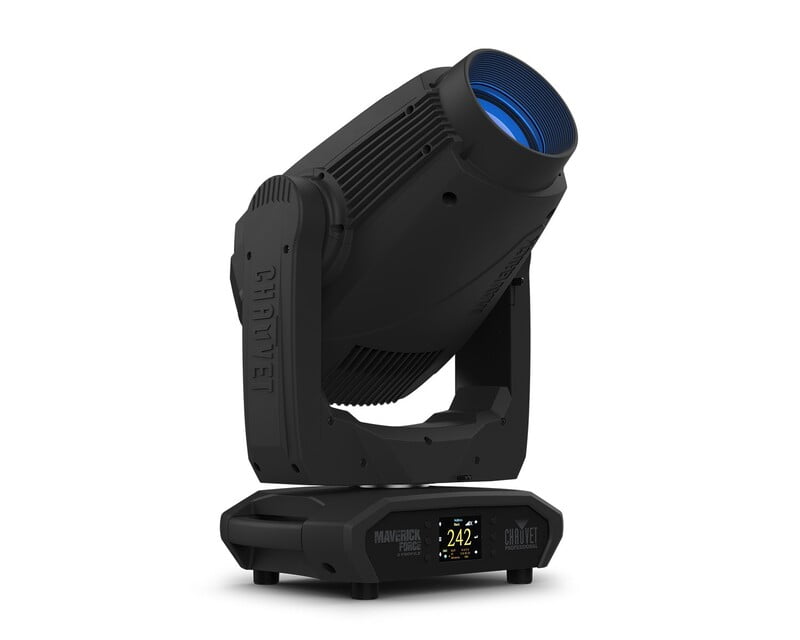

Chauvet Maverick Force 2 Profile Moving Head

Product Specifications

OPTICAL

• Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7055 K, 50,000 hours life expectancy
• Colour Temperature (at full): 7055 K
• CRI: 70.8
• CRI with CRI Filter: 89.3
• Front Lens Diameter: 127 mm
• Beam Angle: 6.8° to 48.1°
• Field Angle: 7.6° to 54.9°
• Cutoff Angle: 8.4° to 55.9°
• Zoom Range: 6.8° to 55.9°
• Lumens – Source: 39,000
• Lumens – Output: 20,856
• Illuminance (7°) 51,865 lux @ 5 m
• Illuminance (55.9°) 1,648 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours: 7 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
• Colours: CMY flags, CTO flag
• Gobos (1): 6 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 6 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (rotating): 22.5 mm (outside), 18.5 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 blades, each with dual axis movement.
• Framing Shutter rotation: 120° total rotation.
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 15.51 x 10.71 x 26.38 in (394 x 272 x 670 mm)
• Dimensions (shipping size): 30.12 x 13.58 x 19.1 in (765 x 345 x 485 mm)
• Weight: 57.3 lb (26 kg)
• Weight (shipping weight): 61.73 lb (28 kg)
• Exterior Colour: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 33 or 50
• Art-Net Channels: 33 or 50
• Modes/Personalities: 2 personalities (33, 50)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 800 W, 8.01 A @ 100 V, 60 Hz
• Power and Current: 780 W, 6.41 A @ 120 V, 60 Hz
• Power and Current: 764 W, 3.68 A @ 208 V, 60 Hz
• Power and Current: 754 W, 3.31 A @ 230 V, 50 Hz
• Power and Current: 762 W, 3.19 A @ 240 V, 50 Hz
• Power and Current (resting): 102 W, 1.02 A @ 100 V, 60 Hz
• Power and Current (resting): 101 W, 0.801 A @ 120 V, 60 Hz
• Power and Current (resting): 111 W, 0.532 A @ 208 V, 60 Hz
• Power and Current (resting): 123 W, 0.485 A @ 230 V, 50 Hz
• Power and Current (resting): 125 W, 0.467 A @ 240 V, 50 Hz
• Fuse Size: F13 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location
• Noise Level (ambient): 36.8 dB level @ 1 m
• Noise Level (static - Full): 53.5 dB level @ 1 m
• Noise Level (static - ECO): 45.1 dB level @ 1 m
• Noise Level (Static - Auto): 46.9 dB level @ 1 m
• Noise Level (Static - Max): 54.9 dB level @ 1 m
• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
