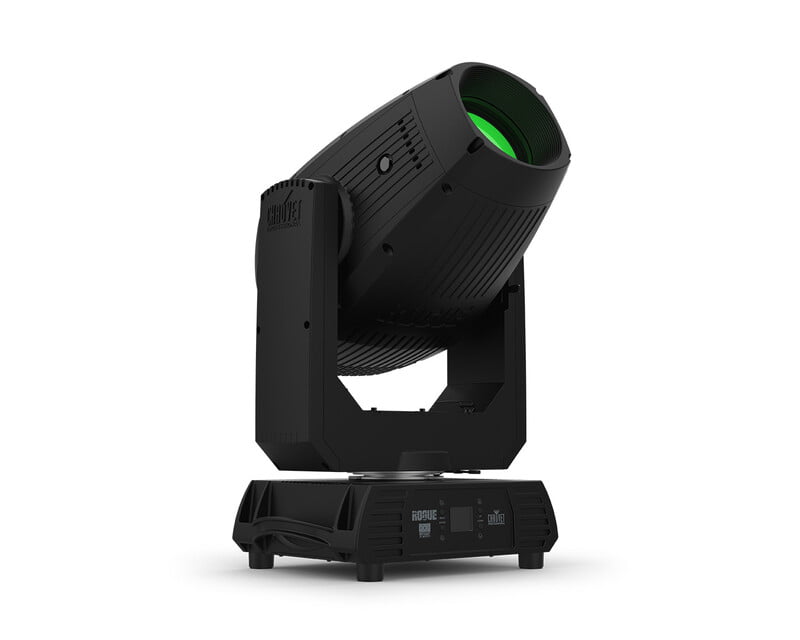

Chauvet Rogue Outcast 2 Beam Moving Head
Rogue Outcast 2 Beam projects intensely bright and tight beams from a lightweight IP65 moving head designed to harness the power of its 300W 8000K lamp to slice through atmospherics and outshine any other effect. Aerial looks are sharp and multifaceted with split colors, stunning gobos, layerable rotating prisms and precision focus. Apply frost for even light distribution. Reduce maintenance with a durable alloy body built to withstand the elements, inside or out.
Availability
2-3 Business Days Choose Quantity
£999,999.00
Product Details
Main Features
- Fully featured, IP65 rated, high powered Beam fixture
- Ushio 300 W, 8,000 hour life expectancy lamp
- Tight 0.8° narrow beam angle
- 17 static gobos
- DMX and RDM protocol control
- True 1 compatible power input
Product Specifications
Optical
- Light Source: 300W NSL Ushio lamp, 8000 K (colour temp), 8,000 hours life expectancy
- Colour Temperature (at full): 7219 K
- Front lens diameter: 160 mm
- CRI: 80.6
- Beam Angle: 0.8°
- Field Angle: 1.5°
- Cutoff Angle: 2°
- Lumens – Source: 30,878
- Lumens – Output: 18,338
- Illuminance (total) : 204,335 lux @ 15 m
Dynamic Effects
- Pan and Tilt: 540°/260°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
- Colours: 14 + white, split colours, continuous scroll at variable speeds
- Gobos: 17 + open (17 metal), 17 static, continuous scroll at variable speeds; size: 106 mm (outside), 6 mm (image), 0.6 – 0.8 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Motorized
- Focus: Motorized
- Frost: Motorized
- Prism: 5 Facets, motorized, rotating
- Prism: 8 Facets, motorized, rotating
- Move-in-Black: Yes
Connections
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP rated
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 413 W, 3.51 A @ 120 V, 60 Hz
- Power and Current: 403 W, 2.01 A @ 208 V, 60 Hz
- Power and Current: 404 W, 1.82 A @ 230 V, 50 Hz
Certifications/Qualifications
- CE, MET, UKCA
- IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
- Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
- Maximum Ambient Temperature (ta): 45° C / 113° F
Physical & Dimensions
- Dimensions: 14.41 x 9.61 x 22.6 in (366 x 244 x 574 mm)
- Weight: 45.19 lb (20.5 kg)
- Exterior Colour: Black
- Housing Material: Aluminium/Magnesium diecast
What's in the Box?
- Rogue Outcast 2 Beam
- Seetronic Powerkon IP65 power cord
- 2 Omega brackets with mounting hardware
