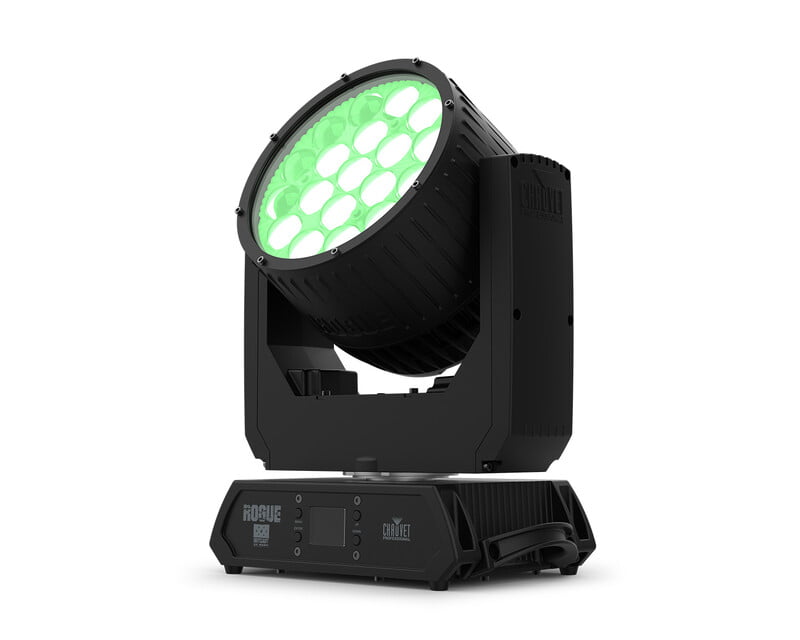

Chauvet Rogue Outcast 2X Wash Moving Head
Rogue Outcast 2X Wash is a lightweight IP65 wash that goes wide and hangs anywhere, with a wide zoom range of 8° to 66°, wide 2800 to 10000 K color temp range, wide selection of simple to complex DMX personalities, and a durable alloy housing that suits this versatile workhorse to the widest range of both indoor and outdoor applications, including on-camera use with its user selectable calibrated white. 19 bright 25W RGBW quad-LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.
Availability
2-3 business days Choose Quantity
£1,791.50 £2,250.00
Product Details
Main Features
- Fully featured IP65 RGBW LED yoke wash fixture
- LED zone control, zoom, durable and lightweight aluminium/magnesium alloy body
- 16-bit dimming of master dimmer as well as individual colours for smooth control of fades
- 19 RGBW LEDs, 25 W each
- 5-pin DMX input/output connections
- 5 zones of LED control for pixel mapping control
Product Specifications
Optical
- Light Source: 19 LEDs (quad-colour RGBW) 250 W, (1.5 A),
- 50,000 hours life expectancy
- Colour Temperature (range): 2800 to 10000 K
- Beam Angle: 8° to 36.1°
- Field Angle: 11.8° to 53°
- Cutoff Range: 17.5° to 66.1°
- Zoom Range: 8° to 66.1°
- Lumens – Output: 6,258
- Illuminance (11.8°): 8,713 lux @ 5 m
- Illuminance (53°): 694 lux @ 5 m
- Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz,
- 6,000 Hz, 15,000 Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Colour Mixing: Yes
- Colour Temperature Presets: Yes
- Dim Curves: 6
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
Connections
- Power Connection: Edison end to Seetronic IP65 PowerKon
- Power Input: Seetronic IP65 PowerKon
- Power Output: Seetronic IP65 PowerKon
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m
Control
- Control Protocol: DMX, RDM
- DMX Channels: 15, 17, 22, 33, 54, or 56
- Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @230 V
- Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz
- Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz
- Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz
What’s Included
- Rogue Outcast R2X Wash
- Seetronic® powerCON® power cord
- Omega bracket with mounting hardware
Certifications / Qualifications
- CE, MET, FCC, UKCL
- IP Rating: IP65 (temporary wet location)
Construction / Physical
- Dimensions: 11.92x8.58x14.1” (303x218x361mm)
- Weight: 35.4 lb (16.1 kg)
- Exterior Colour: Black
- Housing Material: Aluminium/magnesium alloy,
- High-impact flame-retardant polymer
What's in the Box?
- Rogue Outcast R2X Wash
- Seetronic® powerCON® power cord
- Omega bracket with mounting hardware
