Chauvet WELLFit DMX LED Uplighter 6x in Charging Flightcase Chrome IP65
WELL Fit is a must for event lighting. A discrete, high powered LED up-lighter, this small battery powered wash light comes in a reflective chrome housing designed to blend into any décor. WELL Fit can be controlled wirelessly either by W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. All of these features combined make the WELL Fit a perfect solution for quick setup and distinguished accent lighting.

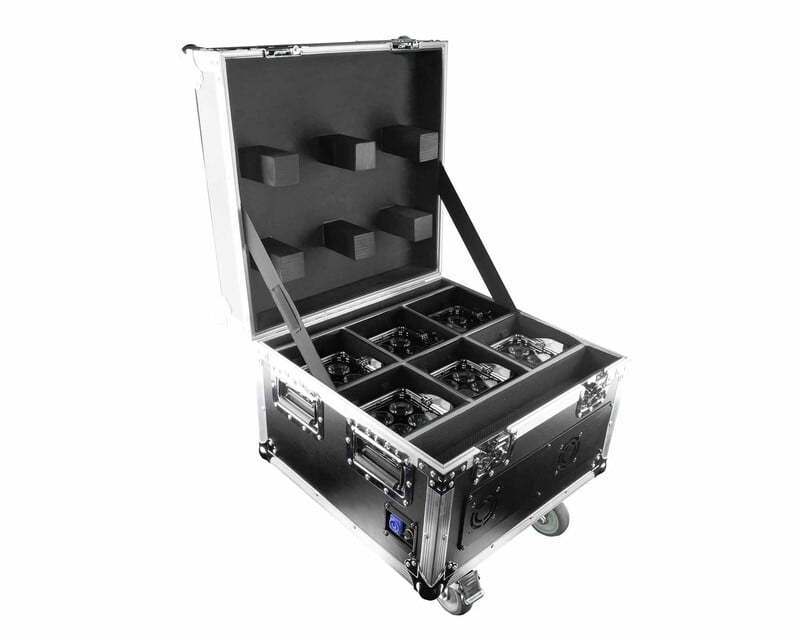

WELL Fit wireless LED luminaries are supplied in a charging road case in packs of six.
Availability
available now Choose Quantity
£999,999.00
Product Details
Main Features
- WELL Fit IP65 Rated Uplighter Wash Light
- Four high powered quad coloured RGBA LEDs
- Reflective chrome housing designed to blend into any decor
- Control with W-DMX, IR remote or OLED display on the fixture
- 8 hours of operation, 5 hours charging time
- Pack of 6 lights with an easy slot drop charging flightcase
Product Specifications
Optical
- Light Source: 4 LEDs (quad- colour RGBA) 10 W, (720 mA), 50,000 hours life expectancy)
- Beam Angle: 11°
- Field Angle: 18°
- Illuminance (18°): 800 lux @ 5 m
- PWM Frequency: 1200 Hz
Dynamic Effects
- Colour Macros: 5 macros
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 24 Hz
- Standalone Colour Mixing: Yes
- Colour Temperature Pre-sets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Physical & Dimensions
- Dimensions: 138 x 145 x 202 mm
- Dimensions (charging case): 519 x 470 x 540 mm
- Weight (single unit): 3.4 kg
- Weight (charging case): 47 kg
- Exterior Colour: Chrome
- Housing Material: Aluminium die-cast
Connections
- Power Connection: Edison (Local) plug to Neutrik® powerCON
- Power Input: Neutrik® powerCON®
- Cable Length (power): 1.5 m
Control
- Control Protocol: W-DMX™, IRCDMX Channels: 3, 4, 6 or 10
- Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current (single unit charging): 48 W, 0.44 A @ 120 V, 60 Hz
- Power and Current (charging case): 288 W, 2.44 A @ 120 V, 60 Hz
- Power and Current (single unit charging): 48 W, 0.25 A @ 208 V, 60 Hz
- Power and Current (charging case): 288 W, 1.5 A @ 208 V, 60 Hz
- Power and Current (single unit charging): 48 W, 0.23 A @ 230 V, 50 Hz
- Power and Current (charging case): 288 W, 1.38 A @ 230 V, 50 Hz
Battery
- Battery type: Lithium Ion
- Rechargeable: Yes
- Battery Charge Time: 5 hours
- Battery Life: (all on) 8 hours, (single LED) 20 hours
- Battery Power: 14.8 V, 11 Ah
Certifications / Qualifications
- CEIP Rating: IP65, temporary outdoor/wet use
What’s in the Box?
- WELL Fit X6
- WELL Fit Charging case
- IR remote
- PowerCON power cable with Edison plug
- QRG
- Warranty card
