Look Solutions Cryo-Fog Low Fogger
Low fog generator to be used with a High pressure tank (Also available in a Low Pressure Version.)

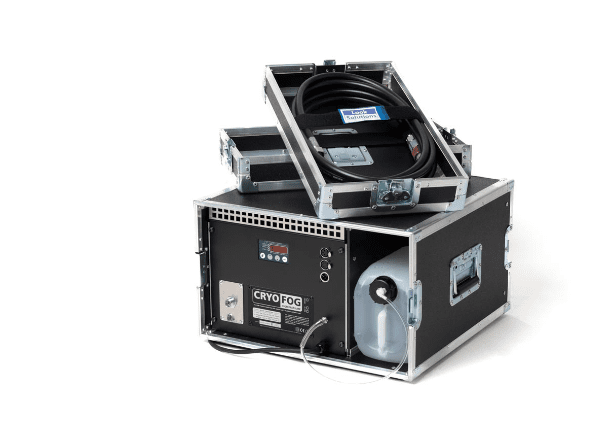

The CRYO-FOG Low Pressure (also available in a High pressure version. Change attribute above) is a powerful low fog generator with 2300 Watt. All build into a compact flightcase, the CRYO-FOG High Pressure contents a low temperature fog generator, a fan as well as a cooling chamber with space next to the fog generator to held a 5ltr can of fluid.
The CRYO-FOG Low Pressure (also available in a High pressure version. Change attribute above) is a powerful low fog generator with 2300 Watt. All build into a compact flightcase, the CRYO-FOG High Pressure contents a low temperature fog generator, a fan as well as a cooling chamber with space next to the fog generator to held a 5ltr can of fluid.
Type
Choose Quantity
£999,999.00
Product Details
- Fog generator, fan and cooling system in a compact case
- DMX as standard, analogue (0 - 10V) and stand-alone-mode
- In the DMX-mode the pump, the fan and the CO 2-valve can be adjusted separately
- Can be used as a "normal" fog generator in DMX-mode
- Fogging output adjustable in steps of 1% from 0 - 99%
- Low fogging process starts automatically only if the cooling chamber has reached the right temperature
- Easy handling
- Powerful output
- Continuous output
- Easy bottle changing with quick-out connectors
- For operation with high pressure cylinders with riser tube
- Made in Germany
Technical data
Procedure
Vaporizing fog machine with CO2 cooling system
Power requirement
2300 Watt / 1700 Watt (at 120 V)
Voltage
230 V / 50 Hz, 120 V / 60 Hz
Warm up time
approx. 7 min.
Fluid consumption
at 100% output 100 ml/min, at 50% output 40 ml/Min.
Fluid tank capacity
5 liter
Fog output
adjustable in 99 steps
Fogging time
continous output
Temperature control
Microprocessor controlled
Overheating protection
Heater block/thermostat, Pump/Thermal switch
Control
DMX 512, 0 – 10 V analog
Dimensions (L x W x H)
67 x 51 x 30 cm
Weight
33 kg incl. canister
Delivery includes
Truecon mains cable, Connecting tube for CO2-bottle, 5L canister Cryo-Fog-Fluid
