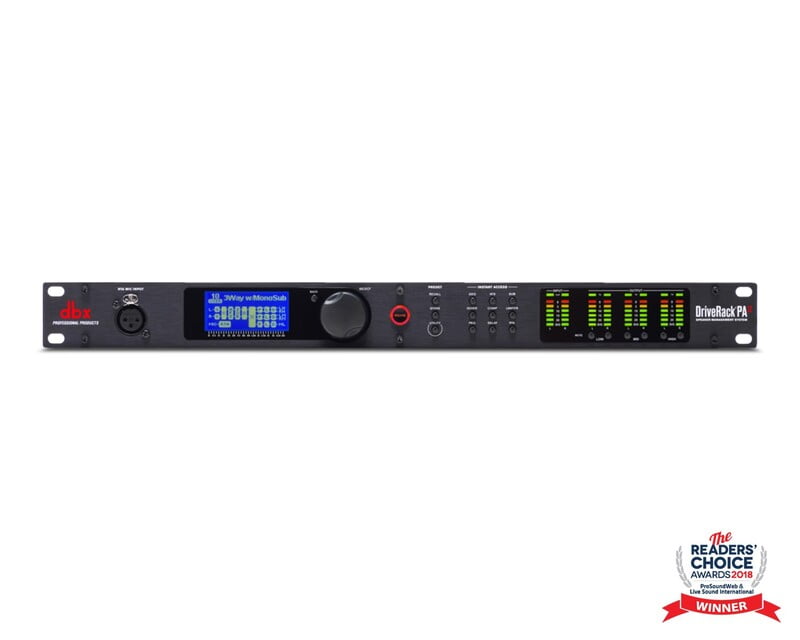

DriveRack PA2 2x6 Sound Mgt Processor with Mobile Control 1U
Availability
2-3 business days Choose Quantity
£466.00 £490.35
Product Details
Main Features
- DriveRack PA2 continues the DriveRack legacy
- Powerful, and affordable loudspeaker management processors
- New input delay module for delaying the FOH system to the backline
- Latest advancements in dbx's proprietary AutoEQ and AFS algorithms
- Provides all the processing you need between your mixer and amplifiers
- Ethernet control via an Android, iOS, Mac, or Windows device
Product Features
- Provides all the processing you need between your mixer and amplifiers
- Latest advancements in dbx’s proprietary AutoEQ and AFS algorithms
- New input delay module for delaying the FOH system to the backline
- Ethernet control via an Android, iOS, Mac, or Windows device
- DriveRack PA2 continues the DriveRack legacy of great-sounding
- Powerful, and affordable loudspeaker management processors
- dbx Compression
- AFS (Advanced Feedback Suppression)
- Graphic EQ
- 8-Band Parametric EQ (adjusted when using the AutoEQ)
- Subharmonic Synthesis
- Crossover (supports full range, 2-way, and 3-way systems)
- 8-Band Parametric EQs (used for speaker tunings)
- dbx Limiting
- Driver Alignment Delays
Product Specifications
- Input: (2) line inputs. (1) RTA Mic input
- InputConnectors: (2) Female XLR line inputs. (1) Female XLR RTA Mic input
- InputType: Electronically balanced/RF filtered
- InputImpedance: >50 kohm
- A/D Converter: dbx Type IV™ Conversion System
- CMRR: > 45dB
- MicPreampPhantomPower: +15VDC (RTA)
- Mic Preamp Equivalent Input Noise (EIN): < -117dB, 22Hz-22kHz, 150 ohm (RTA)
- Output: (6) Line Outputs
- OutputConnectors: Male XLR
- OutputType: Electronically balanced, RF filtered
- OutputImpedance: 120 Ω
- Max Output: +20dBu
- A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted
- Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
- InputDelayLength: 100ms
- AlignmentDelay: 10ms per channel (60ms total)
- SampleRate: 48kHz
- DynamicRange: >110 dB A-weighted, >107dB unweighted
- THD+Noise: 0.003% typical at +4dBu, 1kHz, 0dB input gain
- Frequency Response: 20Hz – 20kHz, +/- 0.5dB
- Interchannel Crosstalk: < -110 dB, -120dB typical (input-to-output: < -100 dB)
- Operating Voltage: 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz
- Power Consumption: 22 W
- Unit Weight: 5.25 lbs. (2.4 kg)
- Shipping Weight: 6.75 lbs. (3.1 kg)
- Dimensions: 1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W)
- D/A Dynamic Range: 112 dB A-weighted, 110dB unweighted
