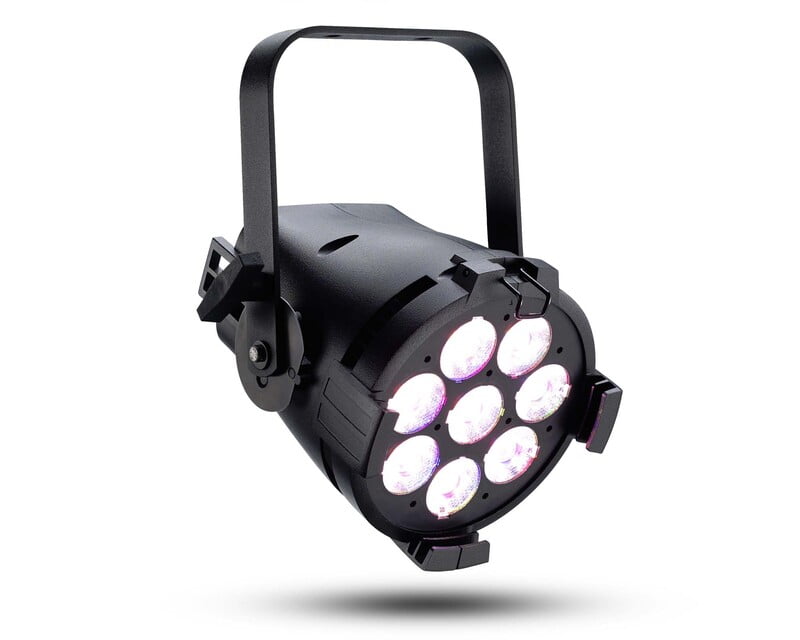

ETC ColorSource PAR RGBL Luminaire XLR Black
So many venues want to add LEDs to their lighting systems, but the fixtures in their price range are far from ideal. ETC's answer to that problem is the ColorSource™ PAR, an LED luminaire crafted by lighting experts. It outputs bright, beautiful light and lives up to ETC's standard for quality and is backed by ETC's industry-leading service.
Most budget LEDs use red, green, blue, and possibly white and/or amber emitters, a combination that results in a limited colour range. In contrast, the ColorSource PAR benefits from ETC's extensive experience in LED colour-mixing, by using the proportionate recipe of red, green, blue, a twist of lime and an extra dash of red. The lime and double-red emitters expand the ColorSource PAR's colour range, allowing users to get a richness only possible from ETC LED luminaires. The unique blend also adds depth, making a more natural, flattering light. And, when ColorSource PAR fixtures are used at any intensity, they maintain their colour quality.
Despite the ColorSource PAR's superior colour capabilities, it's unbelievably simple to use - with or without a lighting desk. Even the simplest console can control the luminaire, which has a special RGB mode allowing it to work easily with third-party consoles. And the ColorSource PAR has its own user interface, which means it can be controlled without a console. Users can simply plug it in and begin working within seconds.
The ColorSource PAR luminaire is an ETC-designed, manufactured and supported product, built to survive everyday use in busy facilities. If there's ever a problem, ETC's renowned customer and technical service specialists are available 24 hours a day, seven days a week, 365 days a year, to solve it.
Main Features
- ETC's new RGB-L chipset (Red, Green, Blue and Lime)
- Homogenized optics
- Simple user interface with seven-segment display
- PowerCon in and thru
- DMX/RDM in and thru (5-pin)
- LED droop compensation
- Easy-to-use, simple RGB control adds lime automatically when needed
- RDM capability
- Power in and thru with PowerCON connectors
- DMX in and thru
- Low-noise fan operation
- Droop compensation for consistent output
- Optically calibrated
- Homogenized optics
Product Specifications
General
- 8 RGB-L chipset colour-mixing wash luminaire
- CE compliant and ETL Listed to UL1573.
- IP20-rated for indoor use
- Power- and DMX-in/thru connections for easy setup
- Simple 7-segment, three-button interface with easy access to 12 customisable presets and 5 sequences
Electrical
- 100VAC to 240VAC 50/60Hz universal power input
- Max. power consumption 230V at full intensity 0.4A / 89W
- PowerCON in and thru connections
- Up to 9 luminaires (15A max) may be linked via power thru connector (10 luminaires total per circuit) when used with ETC Sensor or Unison Relay modules. Equipment supplied by others are likely to support no more than 6 fixtures per circuit. Please examine breaker trip curves for further information.
- Inrush current at 230V: 49A (First half-cycle only)
LED
- 20,000-hour LED life (20,000 hours at 70% intensity)
- 40 Luxeon® Z LED emitters (five per optical segment)
Colour
- Exclusive RGB-L Colour array
- Brightness and colour range unlike any other 4-colour system
- Droop compensation maintains colour accuracy during use
- Optically calibrated to ensure consistency across fixtures
Optical
- Primary field angle of 24.9° and beam angle of 14.5°
- Secondary lenses (D40 range) available for multiple beam spread options
- Homogenised optics for a consistent, smooth beam
- Refer to accessories charts for lenses available
Control
- DMX512 in and thru via five-pin XLR connectors (termination required)
- RGB control (See DMX control table for additional information)
- 15-bit virtual dimming engine provides smooth, high-quality theatrical fades
- RDM functionality for address and setting changes
- Local control of presets (12) and sequences (5)
Thermal
- Ambient operating temperature 0° to 40°C
- Active electronic thermal management for thermal droop-free operation
- Variable-speed fan
- Fixture is designed for continuous operation up to 40°C ambient temperature and requires free flow of air around fixture housing
Physical & Dimensions
- Rugged, die-cast, all-metal housing
- Easy-access slots for secondary lenses and 190mm accessories (Similar to Desire D40)
- Available in black, white, silver grey) or custom colours. Contact your ETC dealer for quotation.
- Hanging yoke included
- Dimensions: Height 310mm, Width 203mm, Depth 240mm
- Weight (without mounting hardware): 3.8kgs
- Shipping Weight: 4.6kgs
