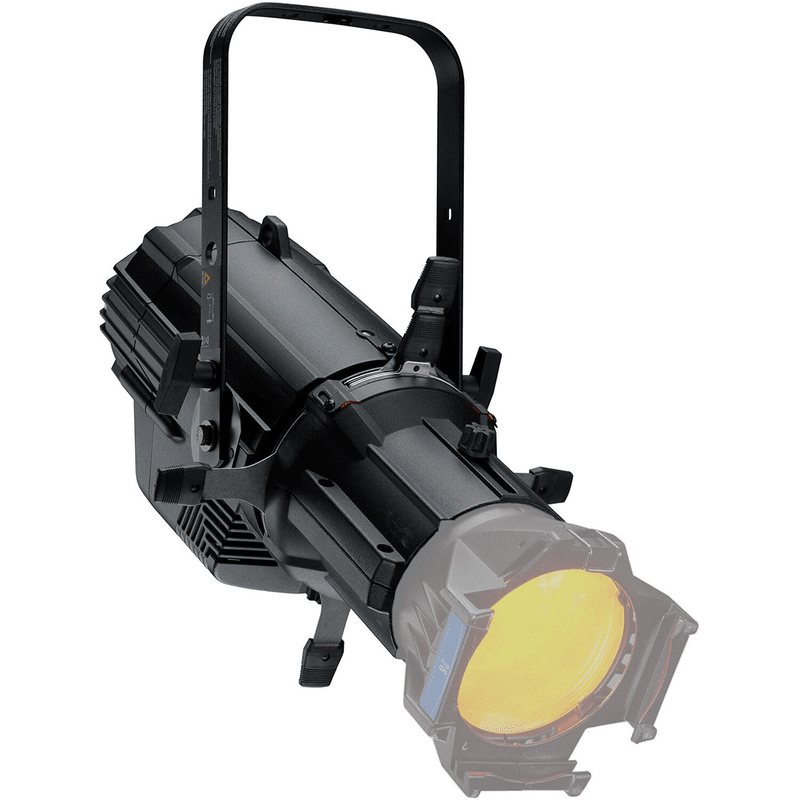

ETC Source Four LED S2 Lustr+ ERS with Shutter Barrel Black
Source Four LED Series 2 luminaires feature the same size, look, optics and beam angles as a conventional Source Four fixture, with the efficiency and energy savings of an LED. They also use the same barrel, so you can easily retrofit your inventory. For the highest-quality, controllable beam, Source Four LED Series 2 luminaires can accept any standard Source Four lens tubes, plus a special LED-only 50° lens tube. You can achieve the best results when using a Source Four EDLT (Enhanced Definition Lens Tube), which makes the beam crisper and cleaner. And you can turn your Source Four LED Series 2 luminaires into powerful cyc lights, by attaching a Source Four LED CYC™ adapter. Your backdrops have never been brighter or more beautiful.
Don't want to spend hours mixing colour? ETC has you covered. Their research team has developed colour algorithms that optimize the colour mix for each hue that your console dials up. Simply use the 'Hue, Saturation and Brightness' or 'Red Green Blue' controls and the luminaire does the rest. The Lustr array adjusts to the proper ratio of lime, red and the other five colours. You save on design time and get great results.
ETC's x7 Colour System™ combines a balanced recipe of up to seven colours to create evocative colour mixes. The Source Four LED Series 2 Lustr array takes the idea even further, with the addition of a lime-green LED emitter. Lime green increases the luminaire's lumen output in open white and lighter tints to make them brighter and livelier, better matching the colour of a conventional Source Four fixture. The lime also enriches colour-rendering by better marrying the red and blue ends of the colour spectrum, for truer-to-life light that fills in the gaps that ordinary LEDs leave behind.
Main Features
- 60 Luxeon® Rebel LED emitters
- Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel
- Multiple control options, including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine for smooth fades and minimal colour shift during dimming
- Available in Black or White
- Includes Engine and Barrel Only
Product Features
- 60 Luxeon® Rebel LED emitters
- Lustr fixtures hold a 54,000-hour L70 Rating
- Daylight HD & Tungsten HD fixtures hold an L70 Rating of >60,000 hours
- 3 arrays: Lustr, Daylight HD and Tungsten HD
- Includes slots for glass or stainless steel patterns and soft focus diffuser
- Accessory slot for motorized pattern devices or optional iris
- Power and DMX in/thru connections for easy setup
- Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel.
- DMX512 in/thru via five-pin XLR connectors
- Multiple control options, including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine for smooth fades and minimal colour shift during dimming
- ETL Listed to UL1573; IP20 rated
- Available in Black or White (Silver also available on request, please call our sales team)
Includes Engine and Barrel Only
Product Specifications
Source
- LED details: 60 Lumileds LUXEON® Rebel LED
- Max lumens
- Series 2 Lustr: 8,667
- Series 2 Daylight HD: 13,060
- Series 2 Tungsten HD: 11,512
- Lumens per watt
- Series 2 Lustr: 51.9
- Series 2 Daylight HD: 52.7
- Series 2 Tungsten HD: 55.3
- L70 rating (hours to 70% output)
- Lustr: 54,000 hours
- Daylight/Tungsten HD: >60,000 hours
Colour
- Colours used
- Series 2 Lustr: Red, Amber, Lime, green, Cyan, Blue, Indigo
- Series 2 Daylight HD: Red, Mint, Blue, Indigo
- Series 2 Tungsten HD: Red, Red-Orange, Mint, Blue, Indigo
- Colour temperature range: Series 2 Lustr: 2,200–6,500 K*
- Calibrated array: Yes
- Red shift: Yes (can be disabled)
*Daylight HD is best suited for CT between 4000 and 6500 K. Tungsten HD is best suited for CT between 2700 and 4500 K.
Optical
- Beam angle range: Swappable lens tubes between 5°–90°
- Gate size: 80 mm
- Aperture size: 6.25–14 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Camera flicker control/Hz range: Yes: 900–25,000 Hz
- Notes: Can be used with LED CYC and Fresnel adapters
Control
- Input method: DMX512 via 5-pin XLR
- Protocols: DMX512/RDM
- RDM configuration: Yes
- UI type: LCD
- Local control: Yes
- Onboard presets: Yes
- Onboard sequences: Yes
- Onboard effects: No
- FixtureLink: Yes
- Notes: 15-bit virtual dimming engine
Electrical
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: Neutrik powerCON in and thru, requires power from a non-dimmable source
- Inrush
- 50 A at 120 V (First half-cycle)
- 107 A at 240 V (First half-cycle)
- Fixtures per circuit
- 9 Lustr or 7 Daylight HD/Tungsten HD (15 A via power thru connector)
- 10 Lustr or 8 Daylight HD/Tungsten HD (via R20 module or Echo Relay Panel)
- Wattage typical
- Series 2 Lustr: 167
- Series 2 Daylight HD: 248
- Series 2 Tungsten HD: 208
- Current draw
- Series 2 Lustr:
- 1.44 A at 120 V
- 0.78 A at 240 V
- Series 2 Daylight HD:
- 1.75 A at 120 V
- 0.93 A at 240 V
- Series 2 Tungsten HD:
- 2.08 A at 120 V
- 0.93 A at 240 V
- Series 2 Lustr:
Thermal
- Ambient operating temp: 0°–40°C (32°–104°F)
- Fan (controllable): Yes (yes)
- Droop compensation: Yes
- dB range: 22.5 dBA average at 1 m
- BTUs/hour
- Series 2 Lustr: 569
- Series 2 Daylight HD: 846
- Series 2 Tungsten HD: 709
Physical
- Materials: Die-cast, all-metal housing
- Colour options: Black, white, silver, or custom colour
- Mounting options: Yoke, cyc floor stand (sold separately)
- IP rating: IP20
- Weight
- With barrel: 8.3 kg (18.3 lb)
- Without barrel: 6.5 kg (14.3 lb)
- Included accessories: Hanging yoke, 1.5 m power cable, soft focus diffuser in an A-size gobo holder, gel frame
- Notes
- Positive locking double-clutch fixture body
- Slot for glass or stainless steel patterns and soft focus diffuser
- Wide accessory slot with sliding cover for motorized pattern device or iris
What's in the Box?
- Source Four LED Series 2 Body
- Source Four LED Series 2 Barrel
- Hanging yoke
- 1.5 m power cable
- Soft focus diffuser in an A-size gobo holder
- Gel frame
