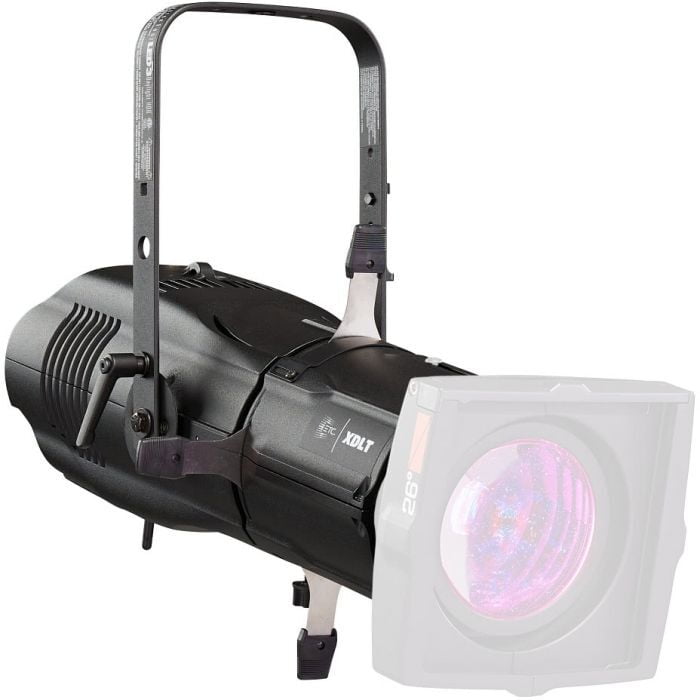

ETC Source Four LED S3 Lustr X8 with XDLT Shutter Barrel Black
Source Four LED S3 Lustr X8 with XDLT Shutter Barrel - Black
Over a decade of research comes together in the Source Four LED Series 3 fixture. ETC brings the eight-colour Lustr X8 array and the tunable white light Daylight HDR array to the professional stage with this fixture. The deep red LEDs in both arrays reveal richer skin tones, bring a deeper dimension to your scenery, and add warmth to sunsets and firelight. Additional features include wireless DMX/RDM through City Theatrical’s Multiverse® technology, contactless programming and control using NFC and ETC’s Set Light app, and an intuitive user interface featuring a colour picker and action-responsive backlit encoders.
Availability
Contact for Availability Choose Quantity
£999,999.00
Product Details
Main Features
- Source Four LED Series 3 lighting fixture finished in black
- Lustr X8: The full-colour Lustr X8 array includes a patent-pending mix of green, lime, blue, indigo, cyan, amber, red, and deep red LEDs.
- The built-in NFC hardware gives you the ability to configure your fixture with your mobile phone or tablet running the Set Light app
- DMX/RDM technology that enables scalability of wireless lighting data like never before
- Intuitive user interface designed to make your workflow as efficient as possible
- Engine body and shutter barrel only
Product Features
- Source Four LED Series 3 lighting fixture finished in black
- Lustr X8: The full-colour Lustr X8 array includes a patent-pending mix of green, lime, blue, indigo, cyan, amber, red, and deep red LEDs.
- The built-in NFC hardware gives you the ability to configure your fixture with your mobile phone or tablet running the Set Light app
- DMX/RDM technology that enables scalability of wireless lighting data like never before
- Intuitive user interface designed to make your workflow as efficient as possible
- Addition of Deep Red to the colour mix
- Engine body and shutter barrel only
Product Specifications
Source
- LED details: 90 Lumileds LUXEON® C and CZ
- Max lumens
- Lustr X8: 10,889
- Daylight HDR: 14,214
- Lumens per watt
- Lustr X8: 35
- Daylight HDR: 42
- L70 rating (hours to 70% output): >54,000
Colour
- Colours used
- Lustr X8: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
- Daylight HDR: Deep Red, Red, Mint, Cyan, Blue, Indigo
- Colour temperature range: 1900–10450 K
- Calibrated array: Yes
- Red shift: Yes (selectable)
Optical
- Beam angle range: Swappable lens tubes between 5°–90°
- Gate size: 80 mm
- Aperture size: 6.25–17.5 in (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Camera flicker control/Hz range: Yes: 5 kHz, 25 kHz
- Notes: Can be used with LED CYC and Fresnel adapters
Control
- Input method: 5-Pin XLR, Multiverse wireless and NFC
- Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
- Modes (footprint): 5 modes (1–12 channels)
- RDM configuration: Yes
- UI type: Full-colour display
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes
- Onboard effects: No
- FixtureLink: Yes
- Notes: 15-bit virtual dimming engine
Electrical
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: AC via Neutrik powerCON TRUE1 TOP
- Inrush
- 40 A at 120 V (First half-cycle)
- 80 A at 230 V (First half-cycle)
- Fixtures per circuit: 5 (link up to 4 via Power Thru connector)
- Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
- Wattage typical
- Lustr X8
- 307 W at120 V
- 305 W at 230 V
- Daylight HDR
- 340 W at 120 V
- 330 W at 230 V
- Lustr X8
- Current draw
- Lustr X8:
- 2.6 A at 120 V
- 1.35 A at 230 V
- Daylight HDR:
- 2.85 A at 120 V
- 1.5 A at 230 V
- Lustr X8:
Thermal
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (yes)
- Droop compensation: Yes
- dB range: 34 dBA average at 1 m
- BTUs/hour
- Lustr X8: 1,047
- Daylight HDR: 1,159
Physical
- Materials: Die-cast, all metal housing
- Colour options: Black, white, silver, or custom colour
- Mounting options: Yoke, cyc floor stand (sold separately)
- IP rating: IP20
- Weight
- With barrel: 8.87 kg (19.55 lb)
- Without barrel: 6.76 kg (14.90 lb)
- Included accessories: Hanging yoke, 1.5 m power cable, A-size gobo holder
- Notes
- Positive locking double-clutch fixture body
- Slot for glass or stainless steel patterns and soft focus diffuser
- Wide accessory slot with sliding cover for motorized pattern device or iris
What's in the Box?
- Source Four LED Series 3 Body
- Source Four LED Series 3 Barrel
- Hanging yoke
- 1.5 m power cable
- A-size gobo holder
