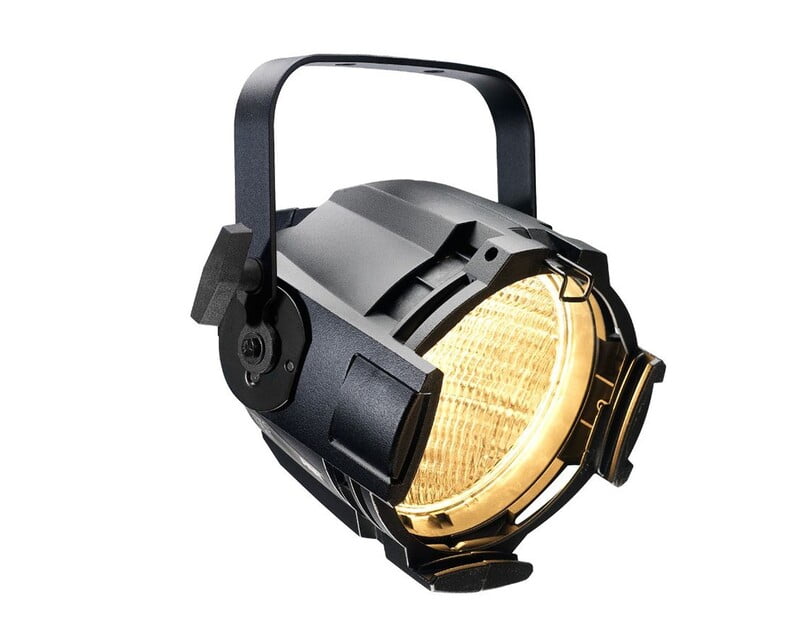

ETC Source Four PAR EA Warm White Black
Power, elegance and efficiency in a PAR! This is no ordinary par can. Source Four PARs stand out of the luminaire crowd with their rugged die-cast aluminium construction and acclaimed Source Four optical technology. Superior brightness and energy savings. Source Four PARs deliver a smooth even field, and at 575 watts are comparable to 1000W PAR64s -- while saving 40% on energy. Need maximum brightness in wash lighting? The Source Four PAR EA is rated for the incomparable 750W HPL lamp. Changing beam angles is easy: Source Four PAR comes with a set of four snap-in lenses that mount in a cool, rotating ring. That also means no more reaching into a hot can with cracked porcelain sockets. And when you need a new lamp, just use your stock of Source Four HPLs (no need to carry a large inventory of expensive PAR64 lamps). The Source Four PAR's compact design means more units can be mounted on a pipe or fit into a truck. Combined with reductions in power and cable requirements, Source Four PARs are perfect for touring.
Main Features
- Power, elegance and efficiency in a PAR
- Rugged die-cast aluminium construction
- Acclaimed Source Four optical technology
- Superior brightness and energy savings
- At 575 watts are comparable to 1000W PAR64s
- Compact design means more units can be mounted on a pipe
- Rated up to 750W
- EA (Enhanced Aluminum) reflector
- Super-efficient HPL lamp
- Interchangeable lenses (VNSP, NSP, MFL, WFL)
- Optional extra-wide flood lens for short-throw applications
- Die-cast faceted reflector
- Die-cast aluminum construction
Product Specifications
Physical
- Rugged die-cast aluminum construction
- Tool free access to the reflector and lens
- High-impact, thermally insulated knobs
- Sealed reflector housing
- Reflector temperature control through integral heat sink fins
- Gel frame holders with two accessory slots
- Top-mounted, gel-frame retainer
- Steel yoke with two mounting positions
- Positive locking yoke clutch
- UL and cUL Listed
- IP20 rated for indoor, dry location use
Electrical
- 115-240V, 50/60Hz
- High-temperature three-conductor 36” leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling technology
Lamp
- Compact tungsten filament contained in a krypton/xenonfilled quartz envelope (see table for suitable lamp types)
- 750W maximum
- Patented filament geometry makes for extremely efficientlight collection and transmission
- Integral die-cast aluminum heat sink lamp base
Lenes
- Four heat resistant, molded borosilicate glass lenses available:
- Very Narrow Spot (VNSP), Narrow Spot (NSP), Medium Flood (MFL) and Wide Flood (WFL).
- Round beam for VNSP and NSP, oblong beam shape for MFLand WFL
- Optional Extra Wide Flood lens (XWFL) also available
- Tool free lens changing
- Thermally insulated lens ring
Opticle
- Modified parabolic and multifaceted reflector
- Computer designed reflector facets molded directly into heat sink casting, finished with an enhanced aluminum deposition process, and polished for maximum reflectance
- Metal Cold Mirror (MCM) also available
