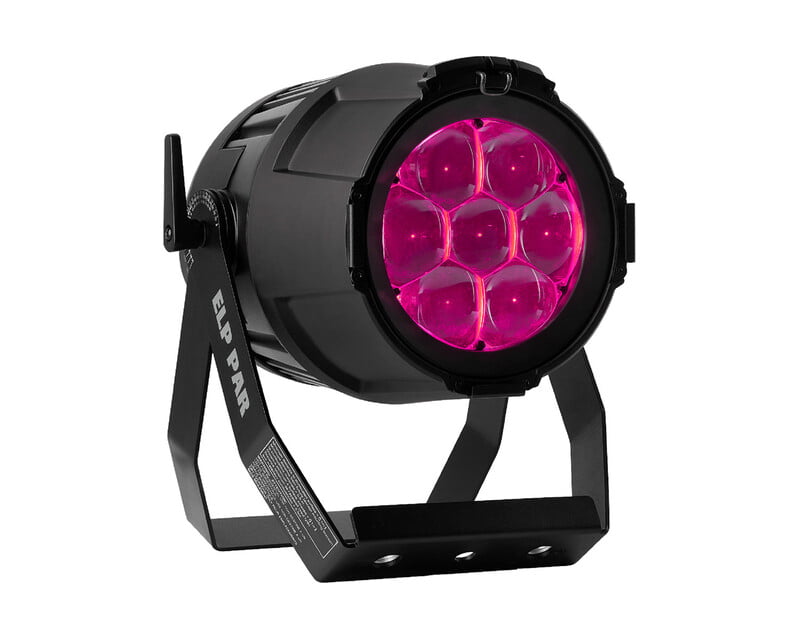

Martin ELP PAR Static 7x40W RGBW LED PAR Fixture 4.2-58° Zoom Black
The Martin ELP PAR static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut colour calibration and smart rigging and control features.
The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that allows RGB color mixing around your desired white point.
Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.
Availability
Contact for Availability Choose Quantity
£1,005.00 £1,270.00
Product Details
- Light engine: 7 x 40W RGBW
- Full-gamut color-calibration system
- CTC control: 1,800–12,850 K
- Lumen output: 3,500 lm
- Intensity: 390,000 cd
- Zoom: 4.2 - 58°
- Quick Focus mode allows installation and focusing without the need for a console operator
- Clear of projection indicators allow quick installation
- Angled power and data connections support a clean cable run that does not impede the fixture or installation
- Included truss and floor-mounting yoke with omega bracket connectivity
- Low-noise 33 dB Theatre mode operation
- IP20 rating
- Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in) (inc. bracket)
- Weight: 7.8 kg (17.2 lbs.)
Product Specifications
Dynamic Effects
- Colour mixing: RGBW
- Colour presets: 48 colour presets, virtual colour wheel effects
- Colour temperature control: Variable 1,800 – 12,850K
- Electronic dimming: 0 - 100%, four dimming curve options
- Strobe and pulse effects: Variable speed and action, random strobe
- Electronic shutter effect: Instant open and blackout
- Zoom: Motorized
Control and Programming
- Control options: DMX, RDM
- DMX channels: 14
- 16-bit fine control: Dimming, RGB, zoom
- LED colour management modes: Raw, extended and calibrated
- DMX address setting: Control panel with OLED display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Firmware update: via DMX using Martin Companion
Optics
- Light source: 7 x 40 W RGBW Osram LEDs
- Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
- Beam angle (half-peak): 4.2° - 38.7°
- Field angle (one-tenth peak): 5.1° - 58.6°
- Cutoff angle (3%): 5.7° - 69.6°
- Binning: Tight colour and flux binning
- Calibration: Full Gamut Colour Calibration
- *Figure obtained under manufacturer's test conditions
Photometric Data
- Wide beam: 3525 lumens
- Narrow beam: 1445 lumens
- Fixture Centre Intensity Narrow Beam: 390083 cd
- Fixture Centre Intensity Wide beam: 9957 cd
- CRI (Colour Rendering Index): >70
- CQS (Colour Quality Scale): 83
- TM-30 Rf (IES TM-30-15 Fidelity Index): 77
- TM-30 Rg (IES TM-30-15 Gamut Index): 117
- TLCI (Television Lighting Consistency Index): 61
- CCT: 6500 Kelvin
- LED refresh rate - Standard Mode: 3600 Hz
- LED refresh rate - Theatre Mode: 19200 Hz
- *All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
- Housing: Aluminium and composite
- Filter mount: 191 x 191 mm (7.5 x 7.5 in.) (PAR46 size)
- Colour: Black
- Protection rating: IP 20
Installation
- Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
- Location: Not for household use, indoor use in dry location only
- Orientation: Any
- Minimum distance to combustible materials: 0.5 m (1.7 ft.)
- Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
- Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
Connections
- AC power input/output: Neutrik PowerCON TRUE1 TOP
- DMX and RDM data in/out: Neutrik 5-pin locking XLR
Electrical
- AC power: 100-240 V nominal, 50/60 Hz
- Typical power consumption: 300 W
- Typical half-cycle RMS inrush current at 240 VAC: 8.7 A
- Power supply unit: Auto-ranging electronic switch mode
Maximum Power and Current
- 100-120 V, 60 Hz: 3.0 A, 320 W, Power factor 0.991
- 220-240 V, 50 Hz: 1.7 A, 320 W, Power factor 0.941
- *Measurements made at nominal voltage with all LEDs at full intensity.
- Allow for a deviation of +/- 10%.
Thermal
- Maximum surface temperature: 65° C (149° F)
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): -10° C (14° F)
- Total heat dissipation (calculated): 1170 BTU/hr.
Acoustic Data
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 33.0 dB(A)
Environmental
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
Approvals
- Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
- United Kingdom: UKCA
Included Items
- Adjustable mounting bracket
- Safety and Installation Manual
Related Items
- Martin Companion Cable (for firmware update over DMX): P/N 91616091
- Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
Physical and Dimensions
- Length: 312 mm (12.3 in.)
- Width: 287 mm (11.3 in.)
- Height: 401 mm (15.8 in.) with bracket
- Weight: 7.8 kg (17.2 lbs.)
