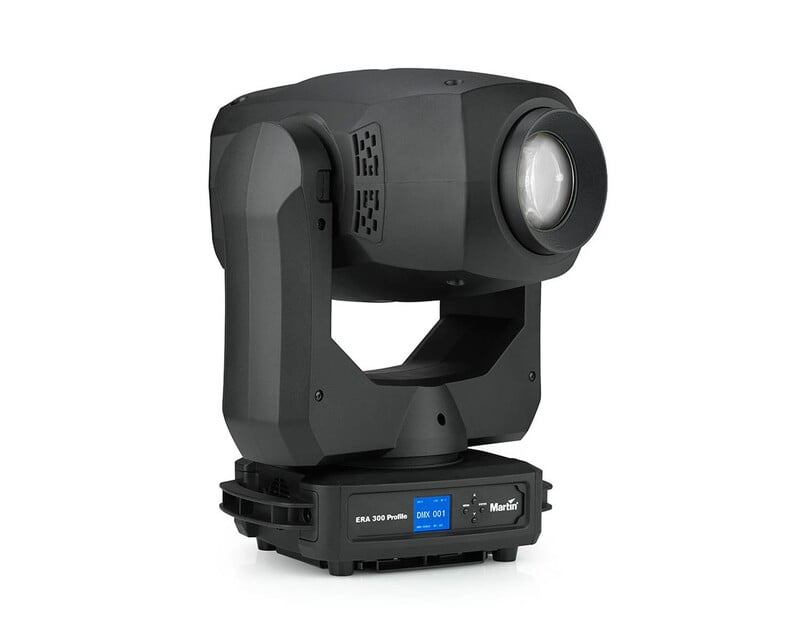

Martin ERA 300 Profile LED Moving Head Profile CMY Colour Mixing 260W

Product Specifications

Physical

• Weight: 17kg (38lbs)

Dynamic Effects

• Electronic dimming: 0 - 100%, four dimming curve options
• Colour  mixing: CMY, independently variable 0-100%
• Colour  wheel: 9 colour  filters plus open
• Beam effects: Rotating three-facet prism
• Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
• Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
• Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
• Iris: 0-100%
• Zoom: Motorized
• Focus: Motorized
• Pan: 540°, coarse & fine control and speed
• Tilt: 260°, coarse & fine control and speed

Control and Programming

• Control options: DMX
• RDM: Implemented
• Setting and addressing: Control panel with backlit LCD display
• DMX channels: 21ch
• DMX compliance: USITT DMX512/1990

Optics

• Zoom range: 13° - 28°
• Light source: 260W LED engine
• Minimum LED lifetime: 20,000 hours (to >70% luminous output)*

^{*Manufacturer´s figure obtained under manufacturer´s test conditions.}

Photometric Data

• Light engine luminous output: 20,000 lumens
• Fixture luminous output: 9,500 lumens
• CRI (Colour  Rendering Index) : >70
• CCT: 6500 Kelvin

Construction

• Housing: High-impact flame-retardant thermoplastic
• Colour : Black/White
• Protection rating: IP20

Gobos

• Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
• Maximum image diameter: 19.0 mm (0.75 in.)
• Gobo thickness, maximum: 1.1mm borosilicate glass

Installation

• Mounting points: Two quarter-turn brackets for rigging clamps
• Orientation: Any
• Connections
• AC power in, thru: Neutrik powerCON TRUE1
• DMX data in/out: 3-pin & 5-pin locking XLR

Electrical

• AC power: 100-240V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Fuse: T 6.3A
• Typical Power and Current
• 120 V, 60 Hz: 3.13A, 374W, PF 0.999
• 230 V, 50 Hz: 1.62A, 362W, PF 0.993

^{Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.}

Thermal

• Cooling: Forced air (temperature regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C
• Minimum ambient temperature (Ta min.): 0° C

Approvals

• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
• US safety: UL 1573
• US EMC: FCC Part 15 Class B
• Canadian safety: CSA C22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM

Included Items

• Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
• Omega brackets for rigging clamp attachment

Accessories

• Cables, 16 A, for connection to power in chains:
  • Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
  • Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
  • Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
  • Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
• Cables, 16 A, for relaying power in chains:
  • Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  • Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  • Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
  • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
• Connectors:
  • Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
  • Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
• Installation hardware:
  • G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  • Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  • Half-coupler Clamp: P/N 91602005
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
