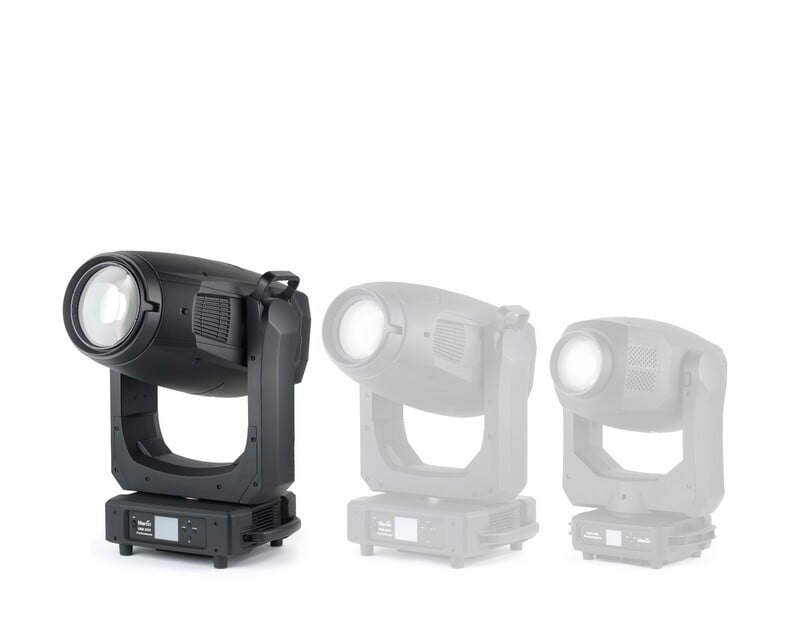

Martin ERA 800 Performance LED Profile Moving Head 800W
Designed to fulfil the demand for an ultra-bright, compact, tour-worthy moving head, the Martin ERA 800 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.
It features a highly efficient, super-bright 800W white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY colour mixing and separate colour wheel, variable colour temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favourite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft and heavy frost filters.
The ERA 800 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage.
Perfect for big, stadium-sized stage and live productions, the Martin ERA 800 Performance is ideal for a long list of scenarios, requiring an extremely bright, yet truly versatile LED profile that offers near limitless design and usage potential.
- Bright 800 watt / 6,500K LED light source
- 34,000 lumen output
- Crisp optics with flat field
- 1:8 Fast zoom
- Fat beam look with 160 mm front lens
- CMY colour mixing - Vibrant colour mixing with a superior palette of colours matching the MAC range
- Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
- 6-slot colour wheel –for added colour choice and split colour effects
- Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
- 6 rotating/indexing gobos – All renowned Martin glass gobos
- 7 static gobos for great morphing effects
- Animation wheel with continuous bi-directional rotation
- Iris – Fast and tight iris
- Two prisms - 4-facet and linear – rotation and index control for dynamic effects
- Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
- Heavy frost – for wash light effects
- Compact and low weight design
Product Specifications
PHYSICAL
- Length: 431 mm (17in.)
- Width: 290 mm (11.4in.)
- Height: 801 mm (31.5in.)
- Weight: 39.5 kg (87.1lbs)
DYNAMIC EFFECTS
- Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
- Electronic dimming: 0 - 100%, four dimming curve options
- Colour mixing: CMY, independently variable 0-100%
- Colour temperature control: Variable 6500 - 2700 K
- Colour wheel: 6 colour filters plus open
- Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction
- Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake
- Iris: 0-100%
- Zoom: Motorized
- Focus: Motorized
- Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
- Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
- Frost: Soft frost effect and heavy frost effect
- Pan: 540°, coarse & fine control and speed
- Tilt: 260°, coarse & fine control and speed
CONTROL AND PROGRAMMING
- Control options: DMX
- 16-bit control: Dimming, pan and tilt
- Setting and addressing: Control panel with backlit LCD display
- DMX channels: 42
- DMX compliance: USITT DMX512/1990
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
OPTICS
- Front lens diameter: 160 mm
- Zoom range: 7° - 56° (1:8)
- Light source: 800W LED engine
- Minimum LED lifetime: 20000 hours (to >70% luminous output)*
- *Manufacturer´s figure obtained under manufacturer´s test conditions
PHOTOMETRIC DATA
- Light engine luminous output: 70000 lumens
- Fixture luminous output: 34000 lumens
- CRI (Colour Rendering Index) : >70
- CCT: 6500 Kelvin
- LED refresh rate: 3600 Hz
CONSTRUCTION
- Housing: High-impact flame-retardant thermoplastic
- Colour: Black
- Protection rating: IP 20
- GOBOS
- Gobo diameter: 30.0mm +/-0.2mm (+/- 0.008 in.)
- Maximum image diameter: 25mm (0.98 in.)
- Gobo thickness, maximum: 1.1 mm (0.04 in.)
INSTALLATION
- Mounting points: Two quarter-turn brackets for rigging
- Orientation: Any
CONNECTIONS
- AC power in, thru: Neutrik powerCON TRUE1
- DMX data in/out: 5-pin locking XLR
ELECTRICAL
- AC power: 100-240V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Idle Consumption: 94 W, all effects static, zero light output
- Half-cycle RMS inrush current at 230 V, 50 Hz: 52.3A
TYPICAL POWER AND CURRENT
- 120 V, 60 Hz: 10.8A, 1270W, PF 0.99
- 230 V, 50 Hz: 5.5A, 1240W, PF 0.97
- Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
THERMAL
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C
- Minimum ambient temperature (Ta min.): 0° C
- Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
- Total heat dissipation (calculated, +/- 10%): 4340 BTU/hr.
APPROVALS
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
- Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
