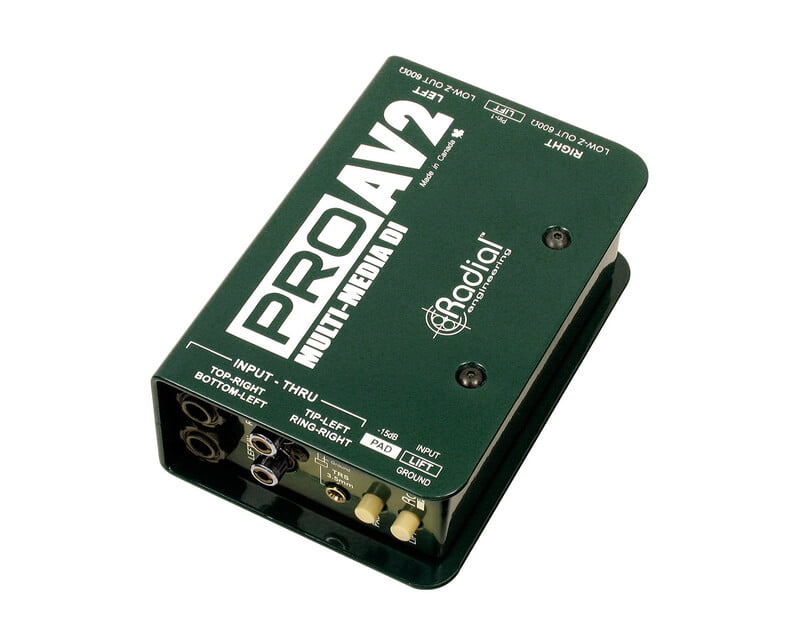

Radial ProAV2 2Ch Passive AV and Multimedia DI Box
The ProAV2 is an indispensable device for live sound engineers and audio-video technicians alike, with the ability to seamlessly interface nearly any device with a pro audio system. A 3.5mm stereo input jack and dual 1/4" and RCA connectors ensure that you won't ever be hunting around for adaptor cables, while ultra-quiet performance with transformer isolation helps eliminate hum and buzz from ground loops. The ProAV2 maintains stereo separation and exhibits linear frequency response from 20Hz to 20kHz, with balanced mic-level XLR outputs that allow you to send signals through a multichannel audio snake on stage or into two channels of a mixing console.
Availability
2-3 business days Choose Quantity
£199.00 £213.20
Product Details
Product Features
- Great-sounding, flexible passive DI
- High performance custom-wound transformer
- XLR, 1/4”, RCA and 3.5mm inputs
- Built-in stereo to mono merge function
- -15dB PAD for wide range of input levels
- Transformer isolation eliminates ground loops
Applications
- Converts hi-Z consumer to low-Z mic-level
- Connect a stereo source to a mono channel
- Unbalanced audio from CDs, laptop, VCRs
- Balanced +4dB audio sources (ProAV1 only)
Cool Factors
- Like a Swiss Army knife for A/V systems
- Completely passive, no power needed
- Ultra-tough 14 gauge steel enclosure
- 3 year transferable warranty
Product Specifications
- Audio circuit type: Passive, transformer based
- Transformer: Eclipse ET-DB2, 12:1 ratio
- Number of channels: Dual channel (stereo)
- Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic range: 128dB
- Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
- Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
- Input Impedance: 140k Ohms, unbalanced
- Output Impedance: 150 Ohms, balanced
- Maximum Input: +18dB @ 20Hz
- Input Connectors: 1/4", RCA, 3.5mm TRS
- Output Connectors: XLR
- Construction: 14-gauge steel chassis & shell
- Size (L x W x D): 3.25” x 5” x 1.875”
- Weight: 0.82kg / (1.8lbs)
- Shipping size (L x W x D): 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
- Shipping weight: 1.2 kg (2.60 lbs)
- Power: Passive, no power required
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
