Radial TWIN ISO 2Ch Line Isolator with Jensen Transformer
Availability
Contact for Availability Choose Quantity
£312.00 £319.81
Product Details

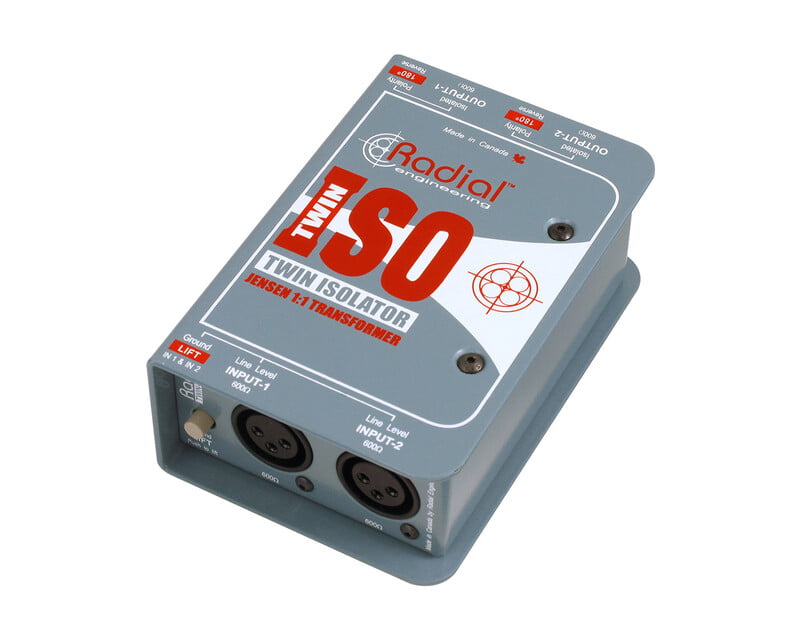

TWIN ISO 2Ch Line Isolator with Jensen Transformer
The Twin-Iso provides a simple and professional way to remove hum and buzz from ground loops by inserting it between any two pieces of balanced audio equipment. It comes equipped with two premium Jensen transformers that deliver exceptional frequency response from 20Hz to 20kHz, with low distortion and the ability to handle high signal levels without saturation - ensuring that the signal integrity of your audio is always maintained. Connect the Twin-Iso between any line-level audio devices, including consoles, amp racks, remote towers, and recorders, and remove ground loops in an instant.
- Stereo isolator withstands up to +21dB cleanly
- Eliminates hum and buzz caused by ground loops
- Transparent operation won’t color audio signal
- Jensen transformers provide exceptionally linear response
Product Specifications
- Audio circuit type: Passive line-level isolation, transformer based
- Transformer: Jensen Transformer
- Number of channels: Stereo (dual mono)
- Frequency response: 10Hz ~ 50KHz (± 1dB)
- Dynamic range: 135dB
- Total harmonic distortion: 0.001% @ 1kHz, +4dBu output
- Phase Deviation: 0.5° @ 100Hz; 37° @ 20Hz
- Input Impedance: 600Ω, balanced
- Output Impedance: 600Ω, balanced
- Maximum Input: +21dBu @ 1kHz, 1% THD+N
Features
- Ground lift
- Input Connectors: 2 XLR-F inputs
- Output Connectors: 2 XLR-M outputs
General
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
