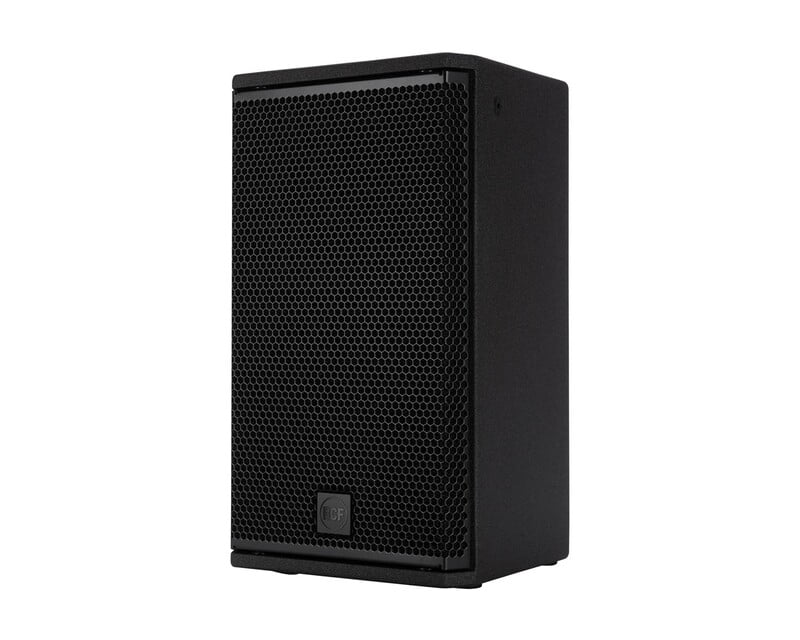

RCF NX 910-A 10" 2-Way Active Loudspeaker System 2100W Peak Black
NX 910-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 910-A blends high-performance and reliability in a compact package. Built specifically for demanding live sound applications, it also features multiple rigging points for fixed installation. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.
- Up to 130 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- 50-20000 Hz linear frequency response
- 1.75" Compression Driver
- 10" Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management
Product Specifications
Acoustical specifications
- Frequency Response: 50 Hz ÷ 20000 Hz
- Max SPL @ 1m: 130 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
Transducers
- Compression Driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 10'', 2.5'' v.c
Input/Output section
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
Processor section
- Crossover Frequencies: 1600 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Linear, Boost, Stage, Volume
Power section
- Total Power: 2100 W Peak
- High frequencies: 700 W Peak
- Low frequencies: 1400 W Peak
- Cooling: Convection
- Connections: VDE
Standard compliance
- CE marking: Yes
Physical specifications
- Cabinet/Case Material: Plywood
- Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10
- bottom, 1 x M10 rear
- Handles: 1 Top
- Pole mount/Cap: Yes
- Grille: Steel
- Color: Black
Size
- Height: 510 mm / 20.08 inches
- Width: 295 mm / 11.61 inches
- Depth: 333 mm / 13.11 inches
- Weight: 16.4 kg / 36.16 lbs
Shipping information
- Package Height: 556 mm / 21.89 inches
- Package Width: 388 mm / 15.28 inches
- Package Depth: 348 mm / 13.7 inches
- Package Weight: 18.1 kg / 39.9 lbs
