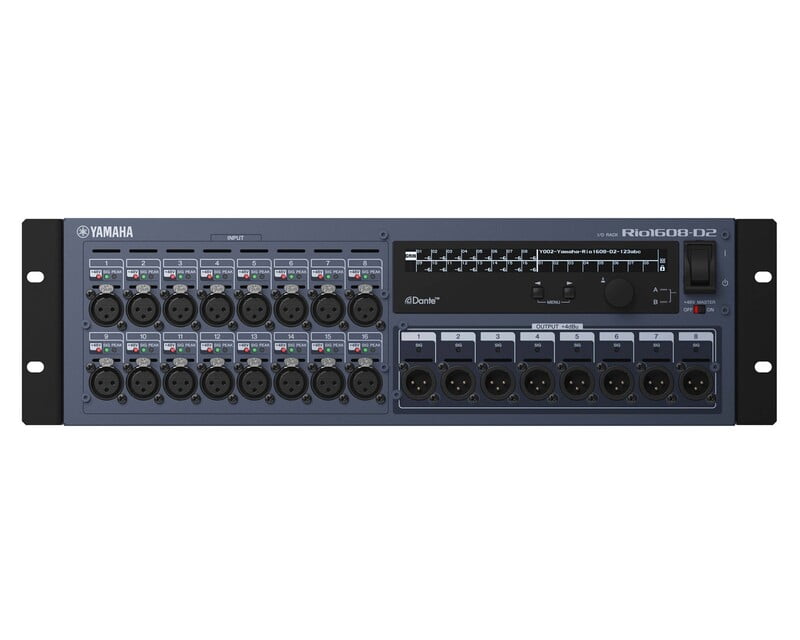

Yamaha RIO1608D2 Dante Network Rack 16in/8out with Dual PSU & OLED
R Series I/O racks employ Dante network audio protocol for exceptional flexibility and freedom in setup and placement, while delivering natural, musical sound that brings out the full sonic potential of mixing consoles and other system components. They also allow redundancy for the utmost reliability in any application. Four models accommodate a wide range of I/O requirements.
The 3U size Rio1608-D has 16 ins and 8 outs.
Availability
2-3 business days Choose Quantity
£999,999.00
Product Details
Product Features
- RIO1608D2 Dante Network Rack
- Long-distance Dante Network Capability
- Display and Encoder for Improved Visibility and Operability
- Remotely Controllable Internal Head Amplifiers
- Gain Compensation Function
- Two Internal Power Supply Units
Product Specifications
General
- Sampling frequency rate
- External: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0%
- Signal delay: Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs="48kHz
- Total harmonic distortion: Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs="44.1kHz," 48kHz / Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs="88.2kHz," 96kHz INPUT to OUTPUT, Input Gain = Min.
- Frequency response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs="44.1kHz," 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs="88.2kHz," 96kHz
- Dynamic range: 108dB typ., INPUT to OUTPUT, Input Gain = Min
- Hum & noise level
- Equivalent input noise: -128dBu typ., Equivalent Input Noise, Input Gain="Max
- Residual output noise: -88dBu Residual output noise, ST master off
- Crosstalk: -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min
- Power requirements: US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
- Power consumption: 70W
Physical & Dimensions
- Height: 144mm
- Width: 480mm
- Depth: 361.5mm
- Weight: 8.8kg
