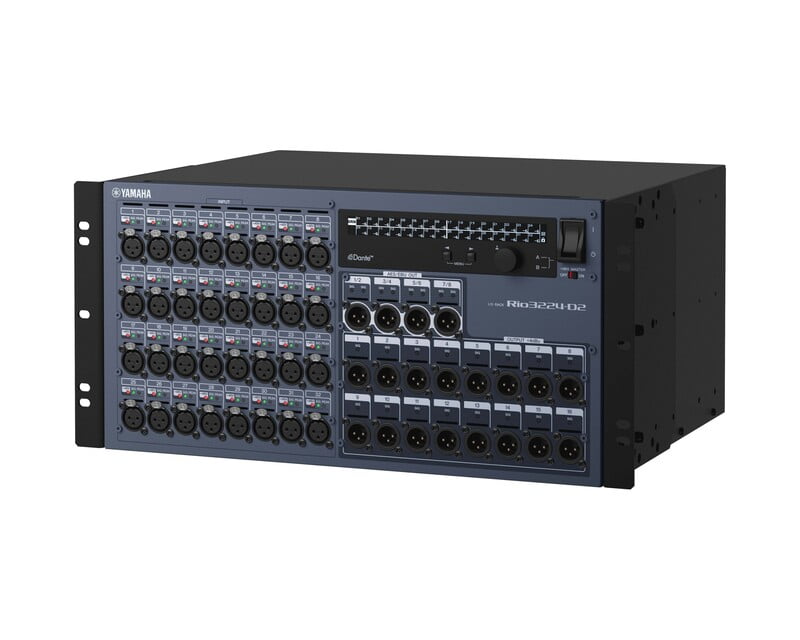

Yamaha RIO3224D2 Dante Network Rack 32in/24out with Dual PSU and OLED
The Yamaha Rio3224-D2 is a high-performance I/O Rack unit with built-in Dante audio networking. Designed and manufactured to achieve outstanding sonic transparency in keeping with Yamaha’s “natural sound” philosophy, it plays a vital role in supporting the performance capabilities of the associated console, offer extensive freedom for placement and multi-unit combinations, and allow redundancy for high reliability. The Rio3224-D2 is not only a standard component of the RIVAGE PM7 Digital Mixing System, but is also fully compatible with CL and QL series digital mixing consoles, offering excellent audio and operational performance that makes the most of Dante networking potential.
Availability
2-3 business days Choose Quantity
£999,999.00
Product Details
Product Features
- Dante network protocol offers extensive flexibility for system setup and configuration
- Includes dual power supply units to reduce the chance of power loss
- Redesigned internal airflow to reduce fan noise
- Directly edit gain, high-pass filters, and phantom power settings from the I/O Rack interface
- Remote operation from the R Remote software
- Gain Compensation function
Product Specifications
General
- Sampling frequency rate External: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, –0.1%, –4.0% (±200 ppm)
- Signal delay: Less than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs=" 96" kHz, Dante Receive Latency set to 0.25 msec
- Total harmonic distortion: Less than 0.05% 20 Hz-20 kHz@+4 dBu into 600Ω, Fs=" 48" kHz, Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600Ω, Fs=" 96" kHz, INPUT to OUTPUT, Input Gain=" Min.
- Frequency response: +0.5, –1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs=" 48" kHz / +0.5, –1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs=" 96" kHz
- Dynamic range: 112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain=" Min
- Hum & noise level
- Equivalent input noise: –128 dBu typ., Input Gain=" Max.
- Residual output noise: –88 dBu, ST master off
- Crosstalk: -100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB, @1 kHz *Measured with a 30dB/octave filter @22kHz
- Power requirements: 100-240V, 50/60Hz
- Power consumption: 120W
Physical & Dimensions
- Height: 220mm
- Width: 480mm
- Depth: 368mm
- Weight: 13.5kg
What's in the Box?
- Owner’s Manual
- AC power cord (250cm)
- Dante Virtual Soundcard Token leaflet
