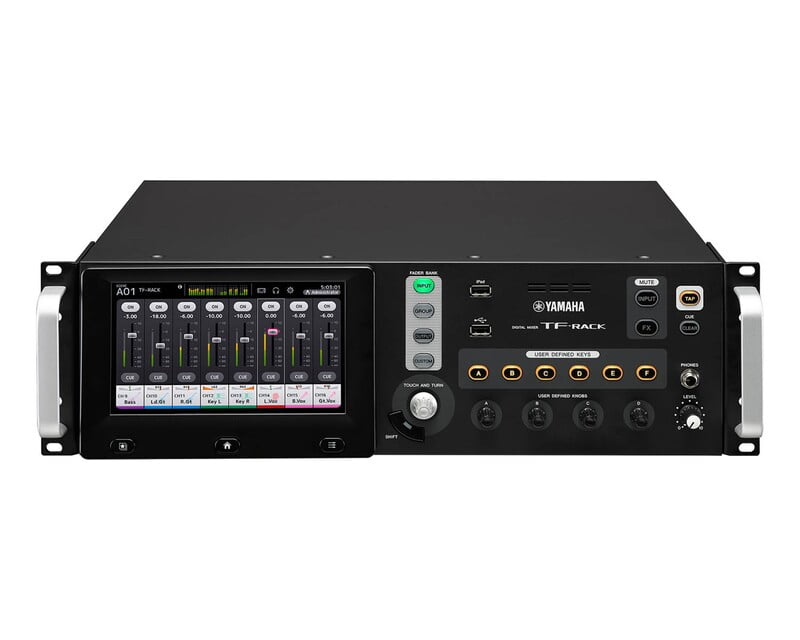

Yamaha TF RACK Compact Rack Mount Version of TF1 Series
TF-RACK offers all-in-one mixing and processing capability for small to medium scale live sound, corporate speech events, installations and much more. It packs intuitive user interface, natural control flow, digital effects/processing units and many shortcuts to great sound into a compact, portable rack-style unit.
Availability
available now Choose Quantity
£999,999.00
Product Details
Product Features
- The scene memory features banks A and B, both capable of holding up to 100 scenes each
- 1-knob EQ feature that provides improved speed and smooth operation
- Features a selection of optimized QuickPro Presets
- Over 100 presets for input channels that range from vocals to drum sets
- For output channels there are several presets for speaker systems and in-ear monitors with many variations to suit all environments and room sizes
- New recallable versions of Yamaha’s acclaimed D-PRE microphone preamplifier
- TF consoles feature eight powerful processing/effect units which feature the same type of SPX processors that have become standards in recording and live sound applications.
Product Specifcations
General
- Sampling frequency rate: Internal 48 kHz
- Signal delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs="48" kHz
- Fader: Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
- Total harmonic distortion: Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain="Min." (Measured with a –18 dB/octave filter@80 kHz)
- Frequency response: +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
- Dynamic range: 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain="Min.
- Input channel functions: 8 DCA Groups
- Crosstalk: –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain="Min.
- On-board processors: DSP 8 Effects + 10 GEQ
- Power requirements: 100–240 V 50/60 Hz
- Power consumption: 85 W
I/O
- Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
- Outputs: 16 (8 XLR + 8 TRS phone)
- Expansion slots: 1 (for NY64-D)
Mixing Capacity
- Input Channels: 40 (32 mono + 2 stereo + 2 return)
- Aux Buses: 20 (8 mono + 6 stereo)
- Stereo Buses: 1
- Sub Buses: 1
Hum & Noise Level
- Equivalent input noise–128 dBu typ., Input Gain="Max." (Measured with an A-Weight filter)
- Residual output noise–85 dBu, ST master off (Measured with an A-Weight filter)
Physical & Dimensions
- Height: 132mm
- Width: 480mm
- Depth: 409mm
- Weight: 9.2kg
